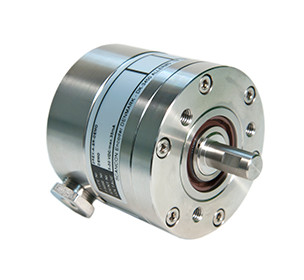

REXM-A-SA
Diameter
68 mm
Resolution
up to 10,000 ppr
Shaft
ø 10 mm to 11 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certificates
Ex db I Mb
Excertifications

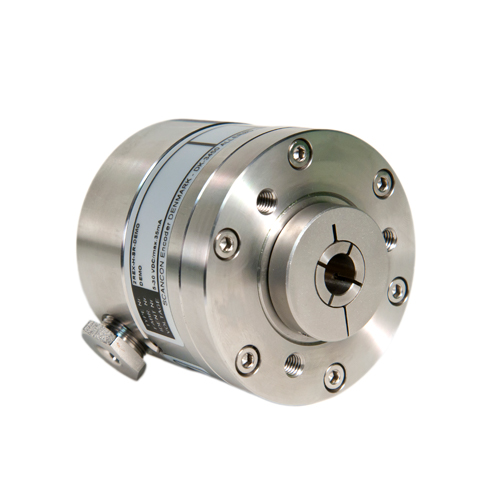

REXM-H-SR
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm and 16 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certificates
Ex db I Mb
REXM-H-SA
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm to 15 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certificates
Ex db I Mb

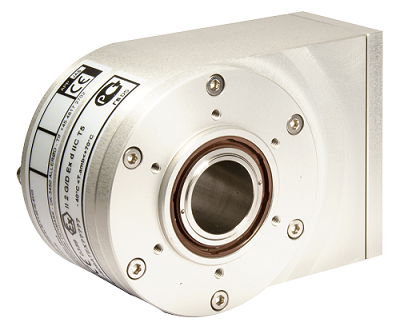

SCH86BXM
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
Ø 5/8 in to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
65 (66 & 67 options)
Certificates
Ex db I Mb

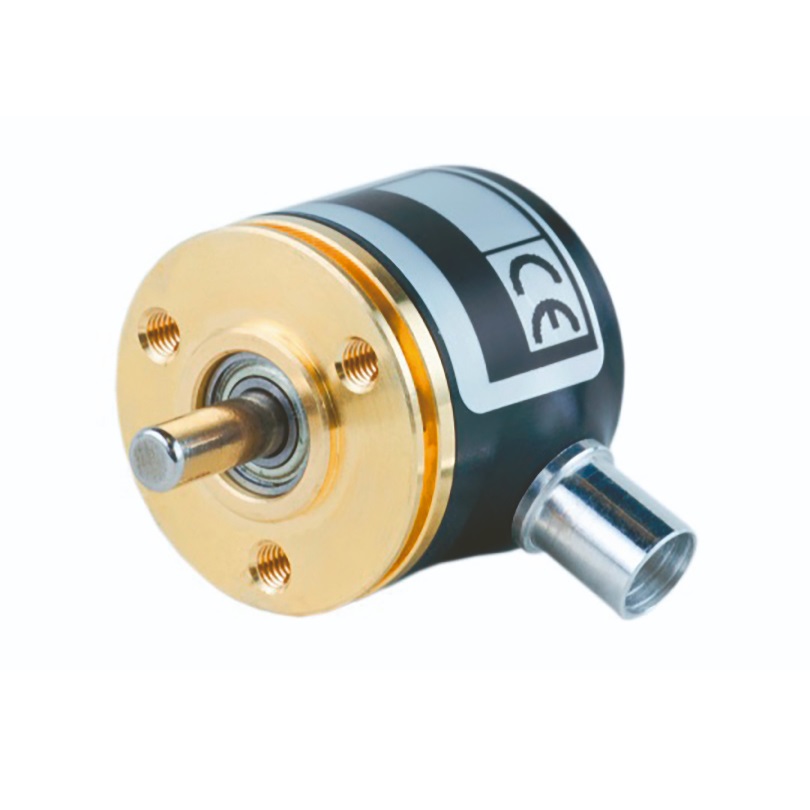

SCA24AC Analog
Diameter
24 mm
Output
0 - 20 mA or 4 - 20 mA
Shaft
ø1/8 in to 4 mm
Temperature
-40° C to 85° C (operating)
Protocol
Analog - Current
SCA24AV Analog
Diameter
24 mm
Output
0 – 5V or 0 – 10V
Shaft
ø1/8 in to 4 mm
Temperature
-40° C to 85° C (operating)
Protocol
Analog - Voltage
SCA30AB SSI
Diameter
30 mm
Resolution
12 bit (singleturn)
Shaft
ø3 mm to ¼ in
Temperature
-40° C to 85° C (operating)
Protocol
SSI
SCA36 SSI
Diameter
36 mm
Resolution
13 bits (Singleturn) / up to 37 bits (Multiturn)
Shaft
ø6 mm to 8 mm
Temperature
-40° C to 85° C (operating)
Protocol
SSI

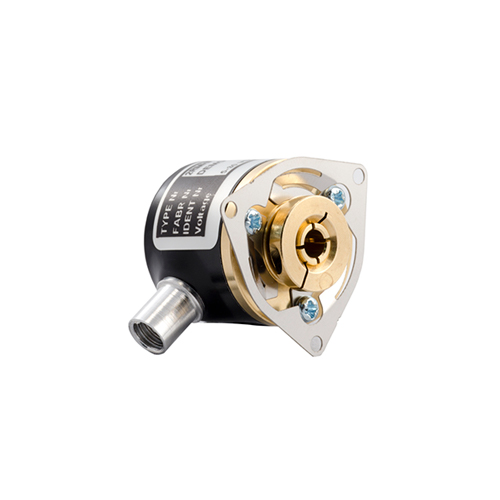

SCH24AB SSI
Diameter
24 mm
Resolution
12 bit (singleturn)
Hollow Shaft
ø 2 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
Protocol
SSI
SCH24AC Analog
Diameter
24 mm
Resolution
0 - 20 mA or 4 - 20 mA
Hollow Shaft
ø2 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
Protocol
Analog - Current
