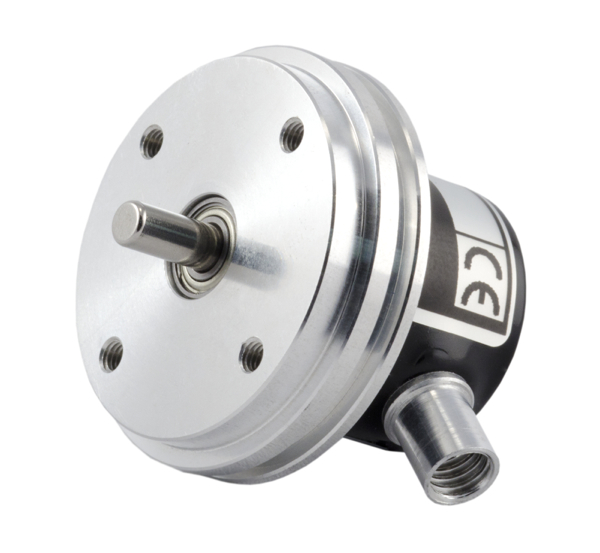

SCA36,5
.svg)
Diameter
36,5 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 6 mm
Temperature
-40° C to 85° C (operating)
IP rating
64 (50 for IDC option)

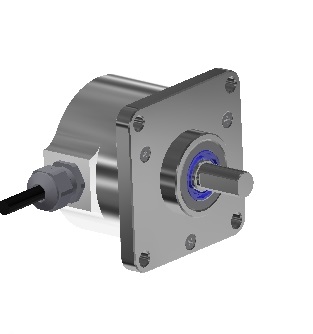

2Q
Diameter
2.5 inch square
Resolution
up to 10,000 ppr
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 85° C (operating)
IP rating
65 (66 & 67 option)
Accessories
- See Flange – SCA50 (pdf)
- See Spring couplings – SCA50 (pdf)
- See Coupling (plastic) – SCA50 (pdf)
- See Coupling (spring) – SCA50 (pdf)
- See Coupling – SCA50 (pdf)
- See Measuring Wheel 12″ – SCA50 (pdf)
- See Measuring Wheel 200mm – SCA50 (pdf)
- See Measuring Wheel 500mm – SCA50 (pdf)
- See Connections M12 – SCA50 (pdf)
- See Connections M23 – SCA50 (pdf)
- See Connections Mill – SCA50 (pdf)

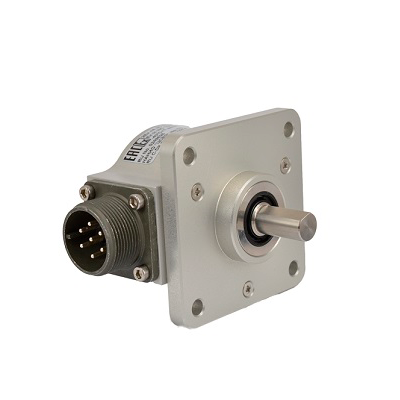

2QEX-A
Diameter
2.5 in or 2.65 in square
Resolution
up to 12,500 ppr
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 70° C (operating)
IP rating
67
Certifications
Ex nA IIC

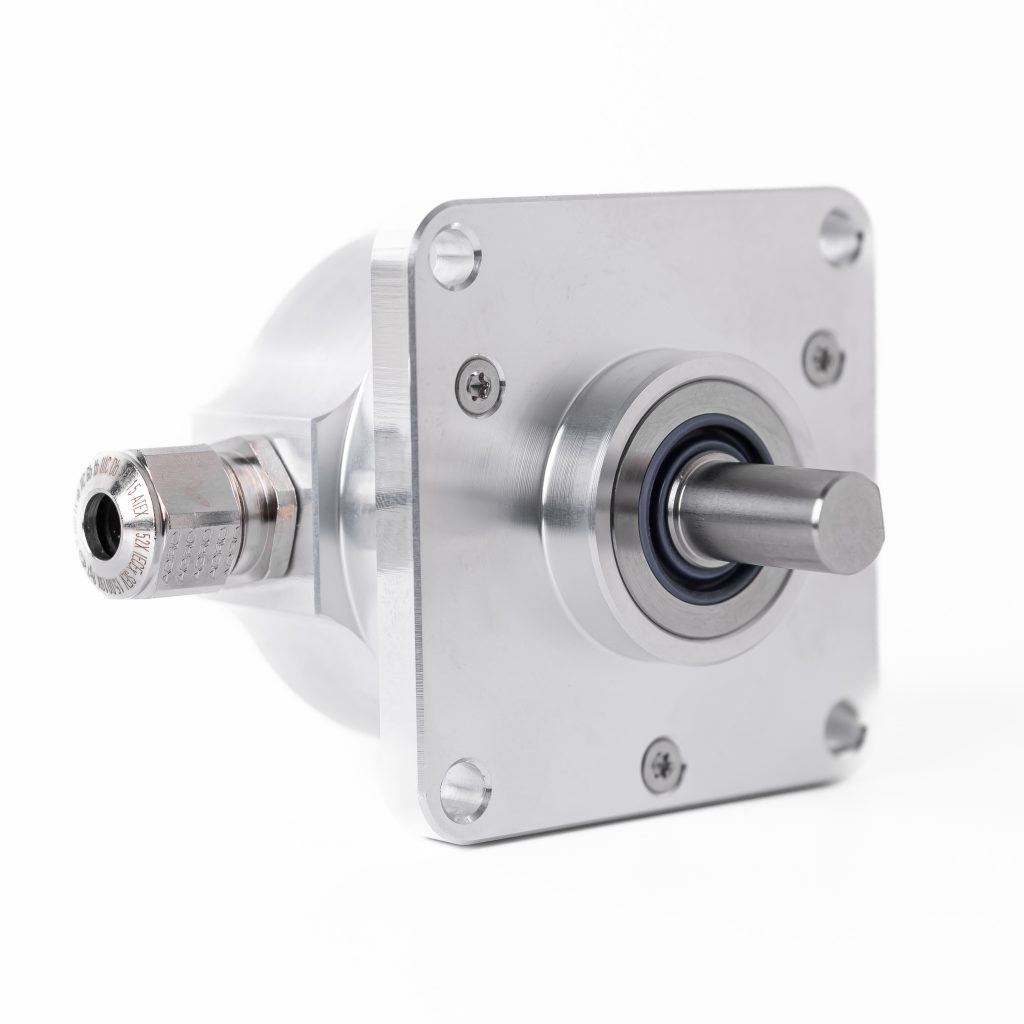

2QEX-A SSI
Diameter
2.5 in or 2.65 in square
Resolution
Up to 13 bits (Singleturn) Up to 37 bits (Multiturn)
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 70° C (operating)
IP rating
67
Certifications
Ex nA IIC

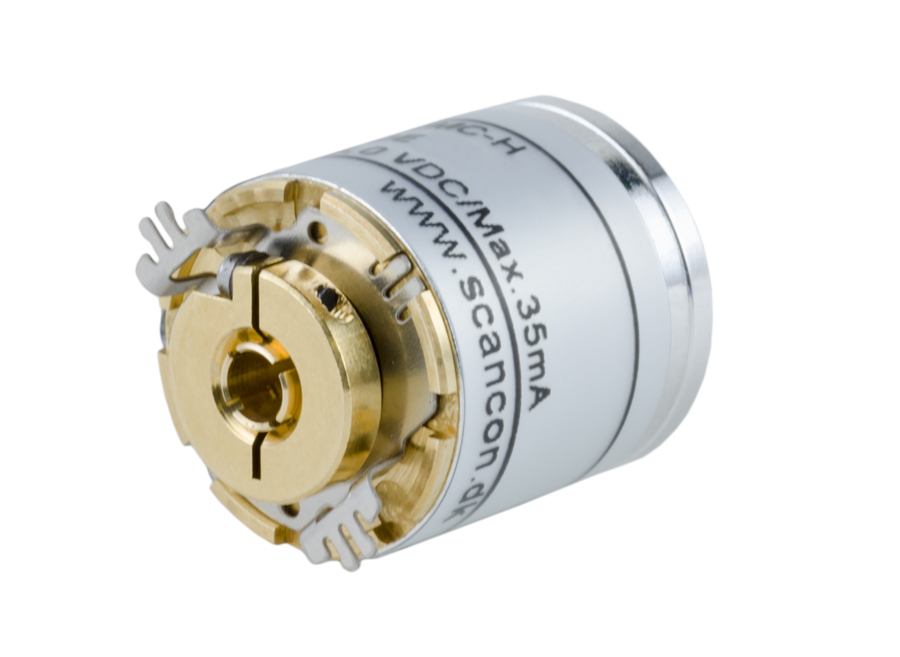

SCH16F
Diameter
16 mm
Resolution
up to 5,000 ppr
Hollow Shaft
ø 1,5 mm to 1/8 in
Temperature
-20° C to 70° C (operating)
IP rating
50
This is a pre-production product

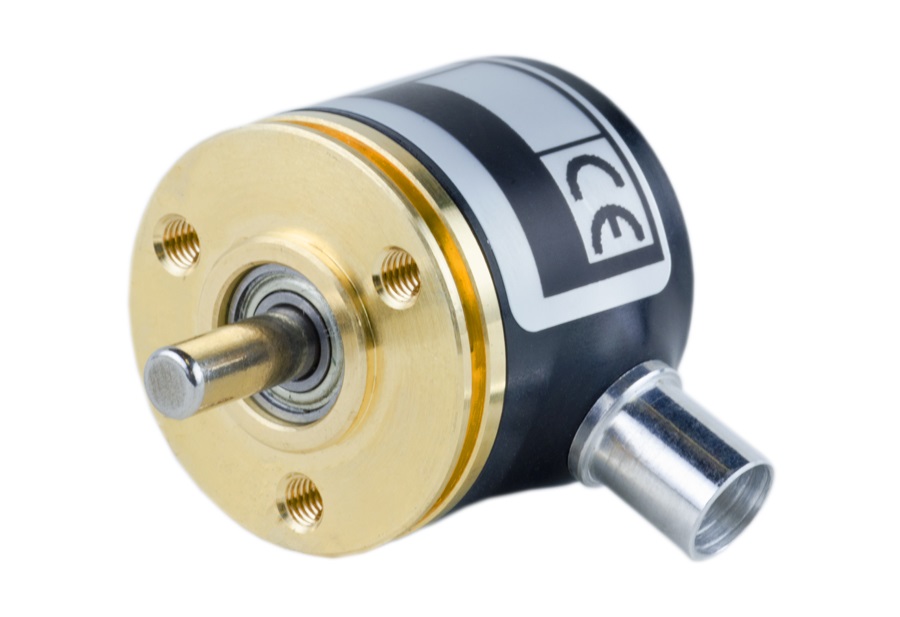

SCA24
Diameter
24 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
65
*notice, only works underwater
SCA24-IP65
Diameter
24 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 6mm
Temperature
-40° C to 85° C (operating)
IP rating
65

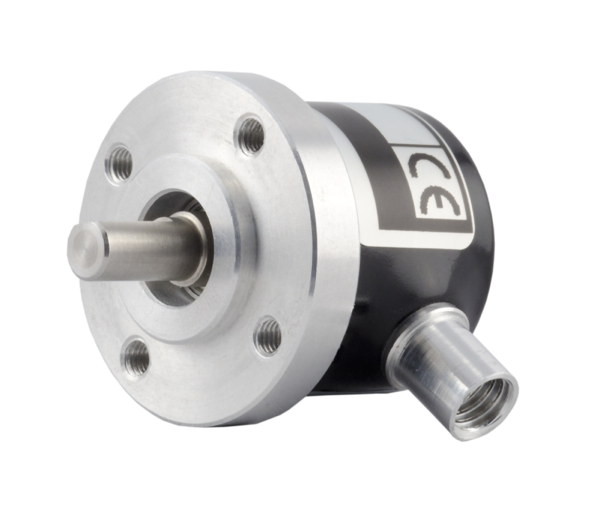

SCA28
Diameter
28 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
50 (65 option)
SCA30
Diameter
30 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
64 (50 for IDC option)

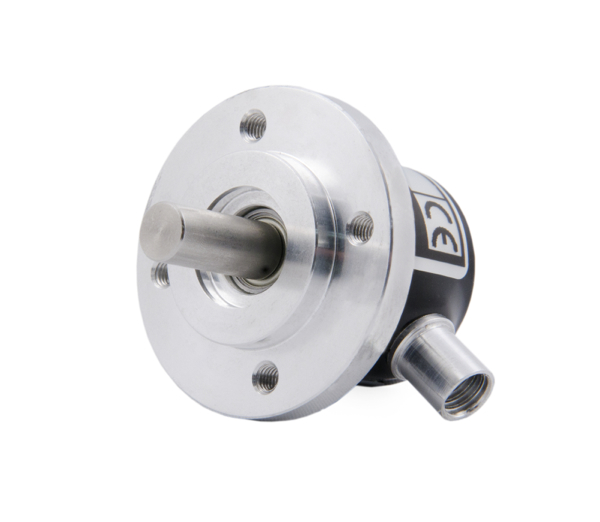

SCA34
Diameter
34 mm
Resolution
up to 7,500 ppr
Shaft
ø 6 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
64, 65 (50 for IDC option)
