Encoders for Harsh Environment Solutions
Scancon has long been an industry leader in providing encoders to the Oil & Gas Industry. With an established expertise in designing harsh environment encoders, Scancon offers a wide variety of ATEX-certified incremental and absolute EX-Proof encoders and related products.
Contact us here: sales-hq@scancon.dk or direct: +45 4817 2702

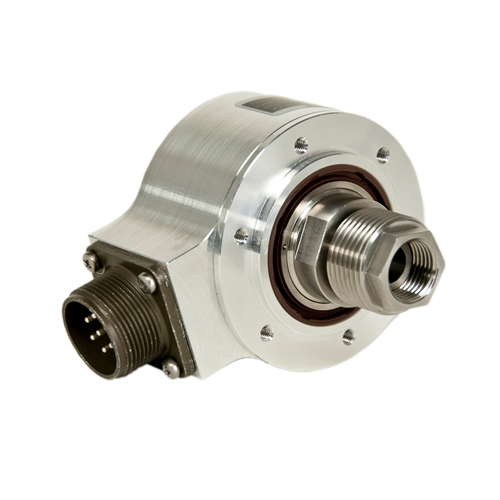

SCH68DW
.svg "Encoders - Oil & Gas 14")
Diameter
68 mm
Resolution
up to 12,500 ppr
Hollow Shaft
ø 20 mm and 1 in
Temperature
-40° C to 85° C (operating)
IP rating
65 (66 & 67 option)
SCA24EX
Diameter
24 mm
Resolution
up to 3,600 ppr
Shaft
ø 4 mm to ø 6 mm
Temperature
-40° C to 70° C (operating)
IP rating
67 (64, 65 & 66 options)
Certifications
Ex db IIC
2QEX-A
Diameter
2.5 in or 2.65 in square
Resolution
up to 12,500 ppr
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 70° C (operating)
IP rating
67
Certifications
Ex nA IIC
2REX-A
Diameter
68 mm
Resolution
up to 10,000 ppr
Shaft
ø 10 mm and 5/8 in
Temperature
-40° C to 70° C (operating)
IP rating
66 (64, 65 & 67 option)
Certifications
Ex db IIC

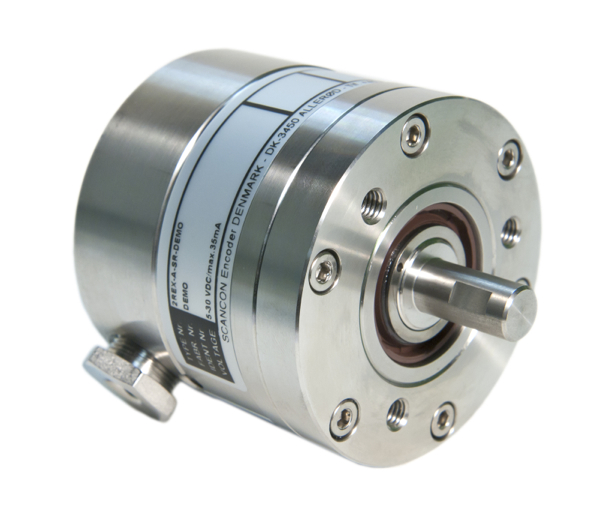

2REX-A-SR
Diameter
68 mm to 115 mm
Resolution
up to 10,000 ppr
Shaft
ø 10 mm to 5/8 in
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIC
2REXI-A
Diameter
68 mm
Resolution
up to 10,000 ppr
Shaft
ø 10 mm to 11 mm
Temperature
-40° C to 75° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIB
SCH24EX
Diameter
24 mm
Resolution
up to 3,600 ppr
Hollow Shaft
ø 2 mm to 1/8 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (64, 65 & 66 options)
Certifications
Ex db IIC
2REX-H
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm to 15 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIC

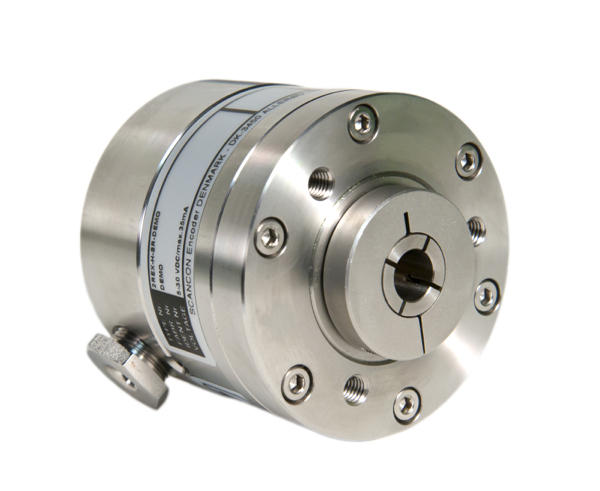

2REX-H-SR
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm to 15 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIC
SCH86BEX
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 5/8 in to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1
SCH86BEX DrawWorks Removable End Cap
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
Standard 1 in - 14UNS threaded bore
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1

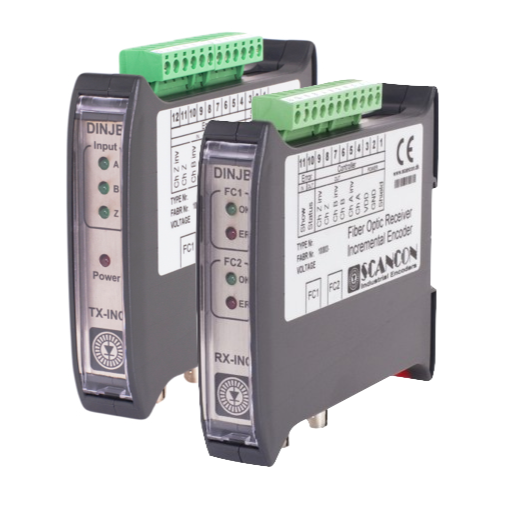

Signal Converter
Types
Transmitter / Receiver
Codes
Incremental
Input/output
Digital to Fiber Optic / Fiber Optic to Digital

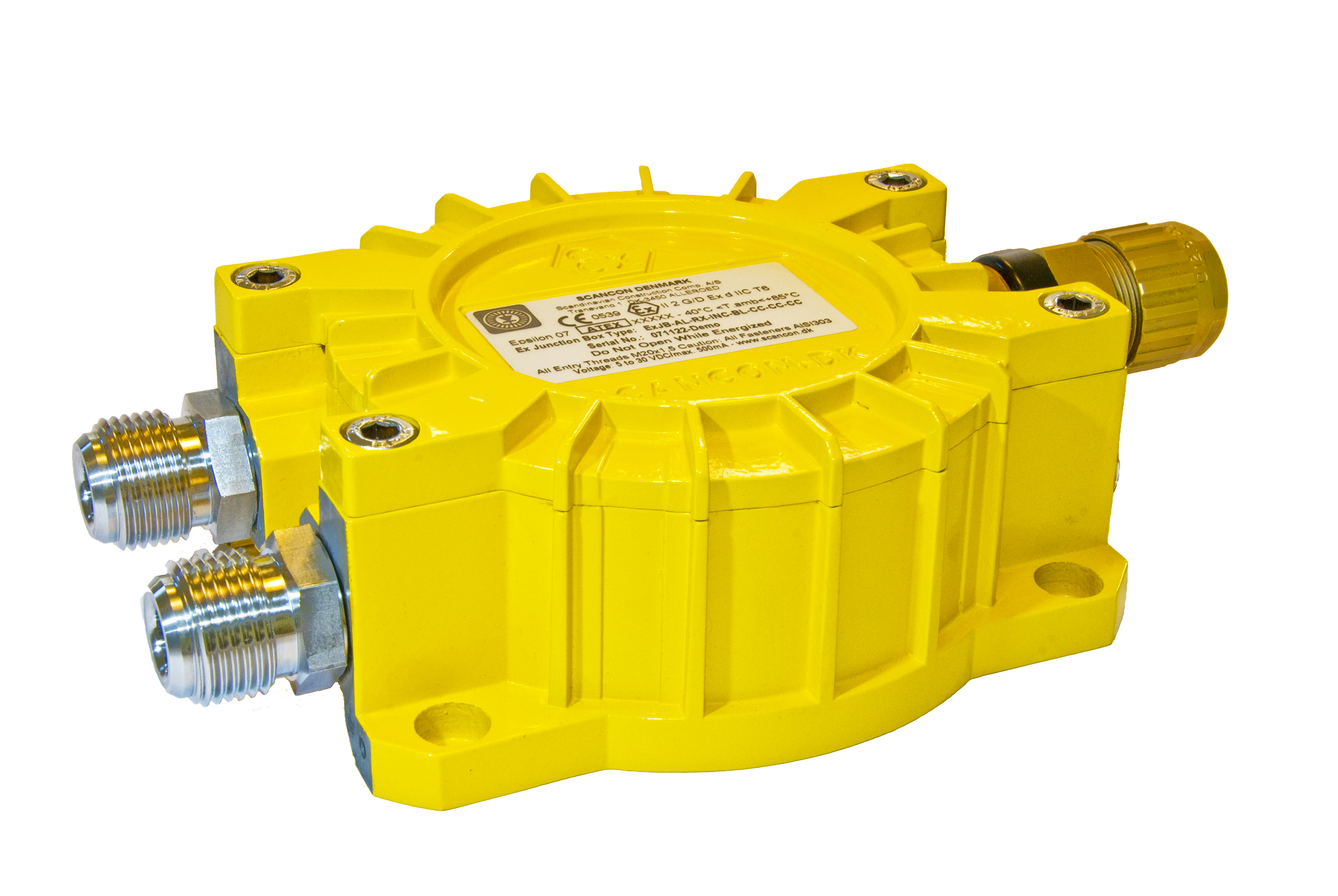

EX-Proof Fiber Optic Junction Box
Types
Transmitter / Receiver
Codes
Incremental
Input/output
Digital to Fiber Optic / Fiber Optic to Digital
