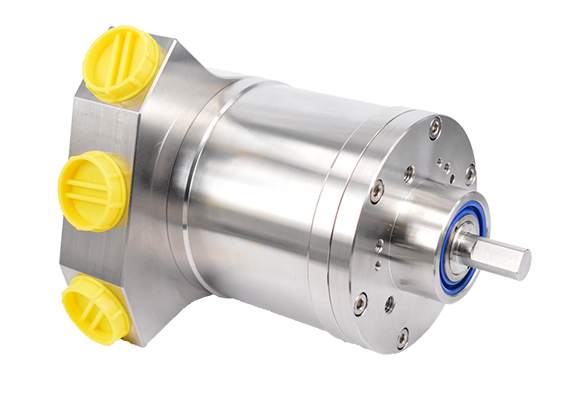

EXAG-A SIL2

Functional Safety
Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 13 bits (Singleturn) Up to 25 bits (Multiturn)
Shaft 10 mm
Temperature -40° C to 70° C (operating)
Protocol SIL2 (Profisafe via Profinet)
Certifications Ex db IIC, Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

User Manual SIL2
Installation Guide
GSD file SIL2
DOC

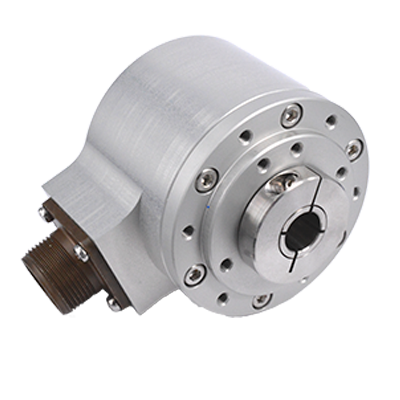

2CEX-H SSI

Incremental and absolute encoders SCANCON
Diameter 68 mm
Resolution up to 13 bits (singleturn) up to 37 bits (multiturn)
Shaft ø10 mm and ø16 mm
Temperature -40° C to 70° C (operating)
Protocol SSI
Certifications Ex nA IIC
Certificate 0
Specifications
Ex certifications
Installation Guide
DOC
Accessories

2REX-H-AN (Analog)

IP rating
Incremental and absolute encoders SCANCON
Diameter 68 mm
Output 0 - 20 mA or 4 - 20 mA
Hollow Shaft Ø 10 mm to Ø15 mm
Temperature -40° C to 70° C (operating)
IP rating 66 (67) option)
Certifications Ex db IIC
Certificate 0
Specification

Certifications

Installation Guide

DOC

EXAG-H-SSI

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 14 mm and ø 16 mm
Temperature -40° C to 70° C (operating)
Protocol SSI
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
DOC

EX78-H Profibus

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 31 bits
Hollow Shaft ø 14 mm and ø 1 inch
Temperature -40° C to 70° C (operating)
Protocol Profibus
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
GSD File
DOC
Accessories

EX78-H Dual Output ProfiBus/Incremental

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 31 bits
Hollow Shaft ø 14 mm and ø 1 inch
Temperature -40° C to 70° C (operating)
Protocol Profibus & Incremental
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide

GSDFile

DOC

EXAG-H ProfiBus

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 14 mm to ø 1 inch
Temperature -40° C to 70° C (operating)
Protocol ProfiBus
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
GSD File
DOC

EXAG-H CANopen

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 14 mm and ø 16 mm
Temperature -40° C to 70° C (operating)
Protocol CANopen
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
EDS File
DOC

EXAG-H DeviceNet

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Temperature -40° C to 70° C (operating)
Hollow Shaft ø 14 mm and ø 16 mm
Protocol DeviceNet
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
EDS File
DOC

EXAG-H Dual Output ProfiBus/incremental

Incremental and absolute encoders SCANCON
Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 14 mm and ø 16 mm
Temperature -40° C to 70° C (operating)
Protocol Profibus & Incremental
Certifications Ex db IIC Class I, Div.2, Zone 1
Certificate 0
Specification

Certifications

Installation Guide
GSD File
DOC
