2REX-H

Incremental and absolute encoders SCANCON
Diameter 68 mm
Resolution up to 10,000 ppr
Hollow Shaft ø 10 mm to 15 mm
Temperature -40° C to 70° C (operating)
IP rating 66 (67 option)
Certifications Ex db IIC
Certificate 0 Certificate 1 Certificate 2
Specifications

Excertifications

Installation Guide

DOC

Accessories

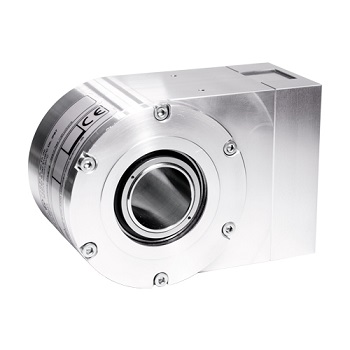

SCH88BEX - Profibus

Incremental and absolute encoders SCANCON
Diameter 89 mm
Resolution Up to 16 bits (Singleturn) / Up to 31 bits (Multiturn)
Hollow Shaft ø 25 mm to ø 30 mm (1.18 in)
Temperature -40° C to 75° C (operating)
IP rating 67 (65 & 66 option)
Protocol: Profibus
Certifications Ex db IIC Class I Div. 1, Zone 1, Zone 21
Certificate 0
Specifications

Excertifications

Technicalmanual

Installation Guide

GSDFile

DOC

Accessories

SCH68SUB SSI (SUBSEA)

Incremental and absolute encoders SCANCON
Diameter 68 mm (hollow bore)
Resolution Up to 13 bits (Singleturn)
Hollow Shaft Ø 20 mm and Ø1 in
Temperature -10° C to 70° C (operating)
IP rating IP 68 to 6000 m depth
Protocol SSI
Certificate 0
Specification
DOC
Accessories

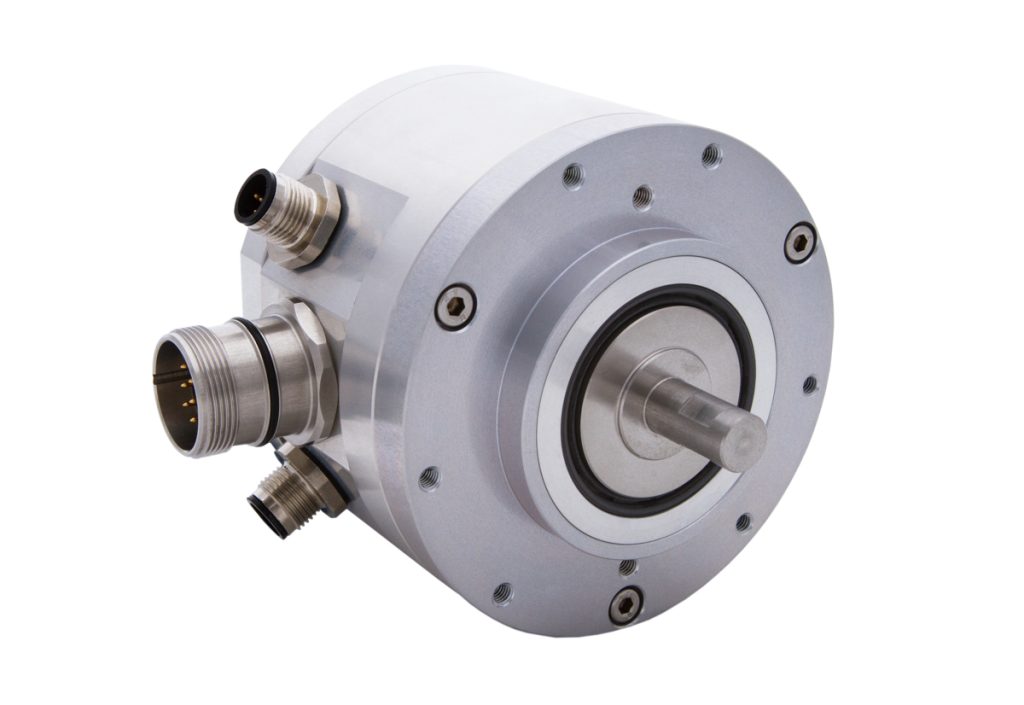

SCA94DD

eCode
Incremental and absolute encoders SCANCON
Diameter 94 mm
Resolution Semi-absolute singleturn
Shaft ø 10 mm
Protocol Profibus
Temperature -40° C to 70° C (operating)
IP rating 67 / Nema 6 (approx.)
Certificate 0
Specification
Technical Manual

SCH68BEX

Diameter 68 mm
Resolution up to 10,000 ppr
Shaft ø 3/4 in and 1 in
Temperature -40 °C to 65 °C (operating)
IP rating 64 (up to 67)
Certifications Ex ec IIC
Certificate 0 Certificate 1 Certificate 2 Certificate 3 Certificate 4 Certificate 5 Certificate 6 Certificate 7
Specifications

Excertifications

Installation Guide
DOC
Accessories
