Encoders for the Motor Industry
Quality Position and Motion Encoders for the Motor Industry
At SCANCON, we are proud to have been providing customers with high-quality position and motion encoders for the automation and motor industry for decades.
The automation and motor industry is experiencing exciting development, and reliable position and motion feedback plays an essential role in modern motor applications.
SCANCON has designed rugged and reliable encoder solutions for position and motion feedback.
We offer not only standard-size encoders but also a variety of innovative products, custom-made to meet specific application requirements.
Our range includes small and large encoders, high IP69K encoders and ATEX encoders, providing solutions for a wide variety of motor applications.
Encoders for Motors
We provide high-precision encoder solutions to you, who are looking for a reliable solution that works perfectly in tandem with your technology devices.
Quality and reliability have always been a hallmark of SCANCON encoders, if you want to hear more about how our encoder solutions as a whole can support you, please do not hesitate contacting us!
Reach us by e-mail: sales-hq@scancon.dk or phone +45 48 17 27 02
Products suited for this industry
SCA16
Formerly named 2MCA
*this only works under water
Diameter:
16 mm
Resolution:
up to 5,000 ppr
Shaft:
ø 1,5 mm to 4 mm
IP rating:
50, 65
Temperature:
-20° C to 70° C (operating)

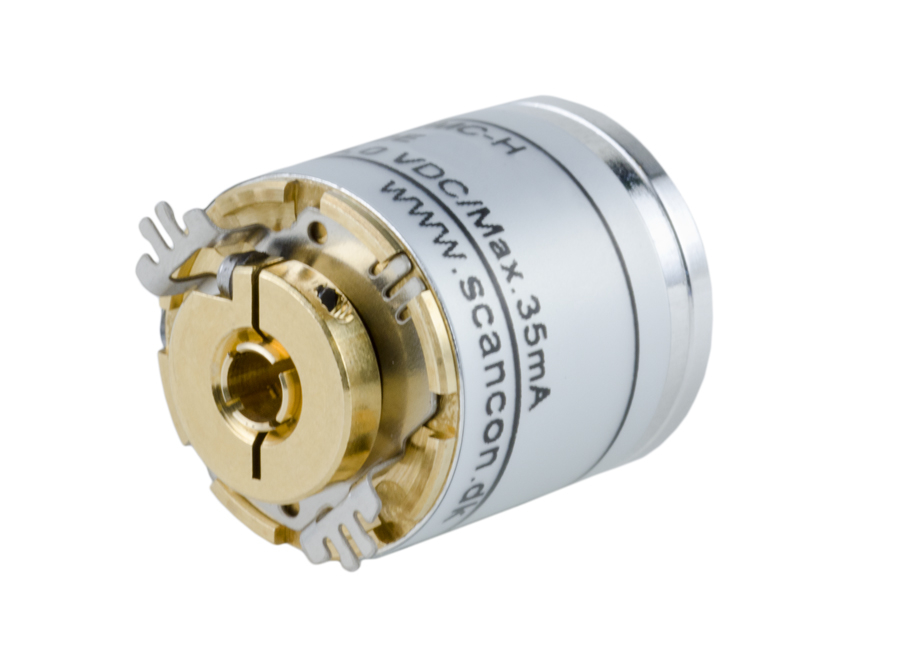

SCH16F
This is a pre-production product
Diameter:
16 mm
Resolution:
up to 5,000 ppr
Hollow Shaft:
ø 1,5 mm to 1/8 in
IP rating:
50
Temperature:
-20° C to 70° C (operating)
SCA24-IP65
Formerly named 2RM-IP65
Diameter:
24 mm
Resolution:
up to 7,500 ppr
Shaft:
ø 4 mm to 6mm
IP rating:
65
Temperature:
-40° C to 85° C (operating)

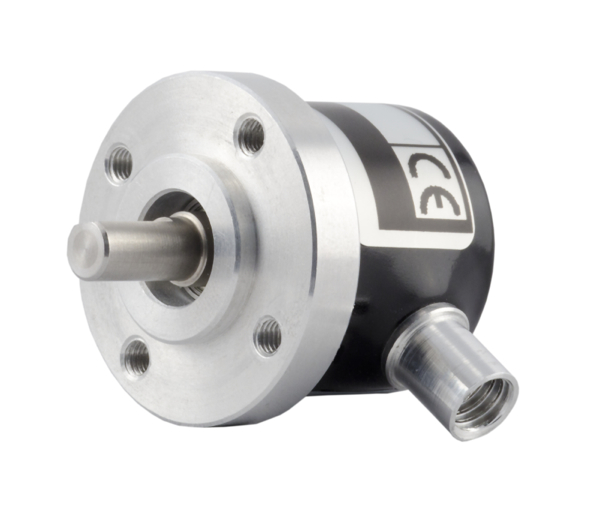

SCA28
Diameter:
28 mm
Resolution:
up to 7,500 ppr
Shaft:
ø 4 mm to 1/4 in
IP rating:
50 (65 option)
Temperature:
-40° C to 85° C (operating)
SCA36,5
Diameter:
36,5 mm
Resolution:
up to 7,500 ppr
Shaft:
ø 4 mm to 6 mm
IP rating:
64 (50 for IDC option)
Temperature:
-40° C to 85° C (operating)

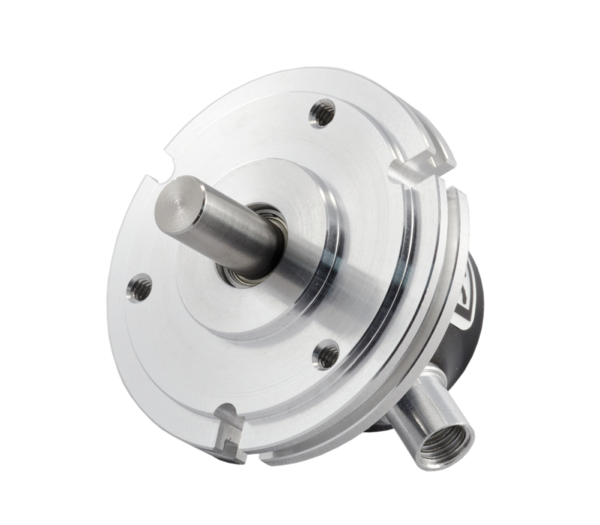

SCA41
Diameter:
41 mm
Resolution:
up to 7,500 ppr
Shaft:
ø 6 mm to 1/4 in
IP rating:
64 (50 for IDC option)
Temperature:
-40° C to 85° C (operating)

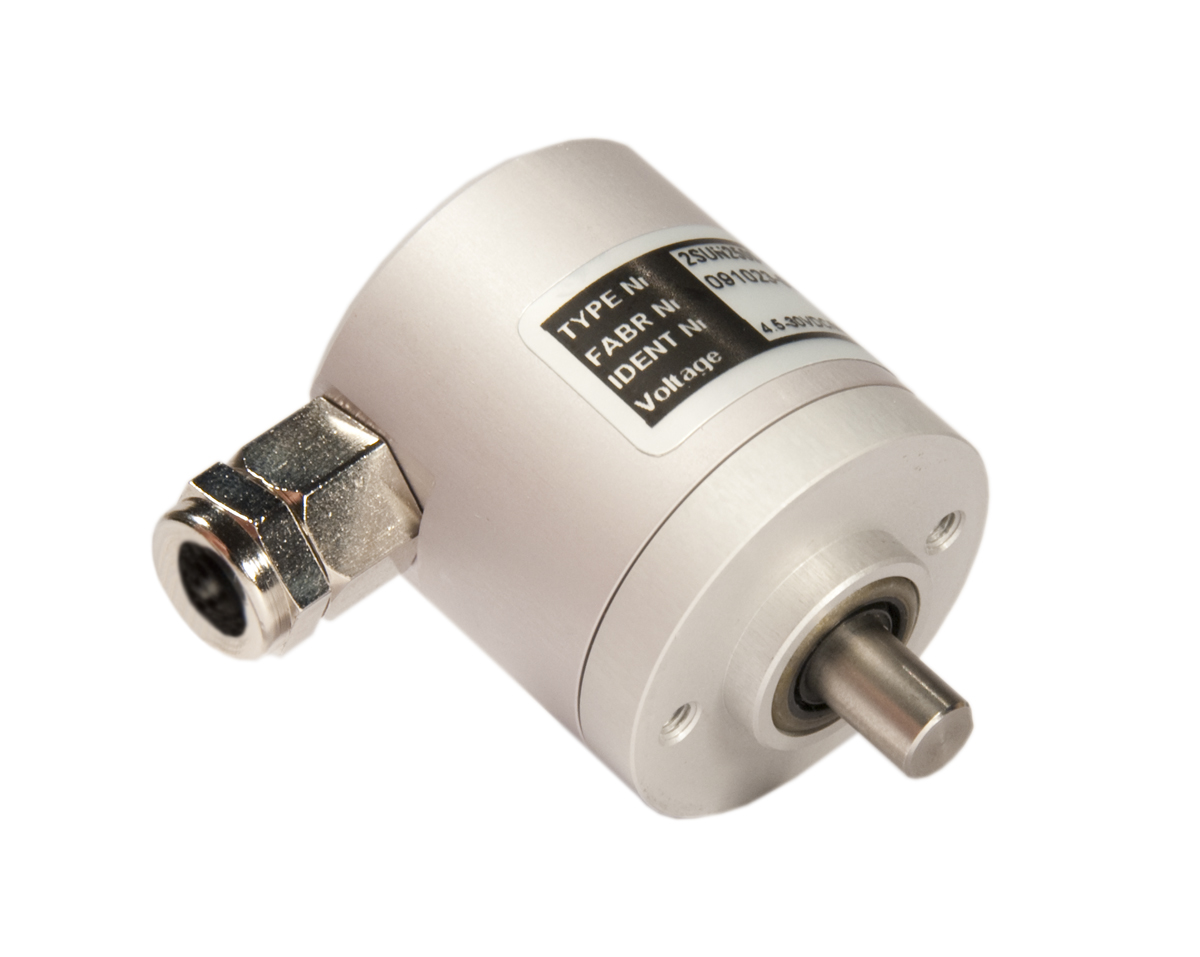

2SUN
Diameter:
24 mm
Resolution:
up to 7,500 ppr
Shaft:
ø 6 mm
IP rating:
67
Temperature:
-40° C to 85° C (operating)

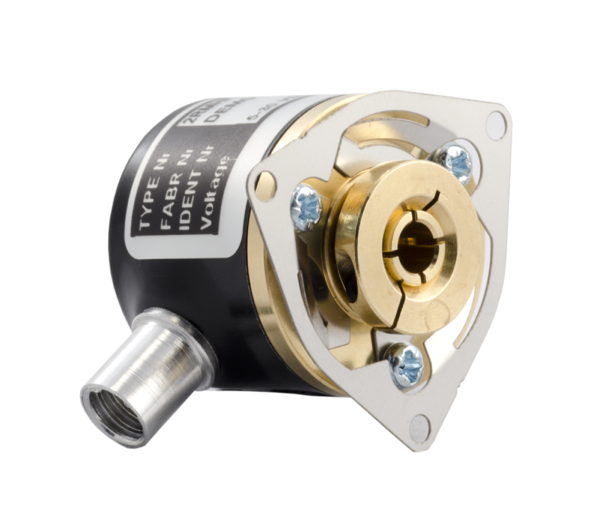

2RMHF
Diameter:
24 mm
Resolution:
up to 7,500 ppr
Hollow Shaft:
ø 2 mm to 1/4 in
IP rating:
64 (50 for flat cable option)
Temperature:
-40° C to 85° C (operating)

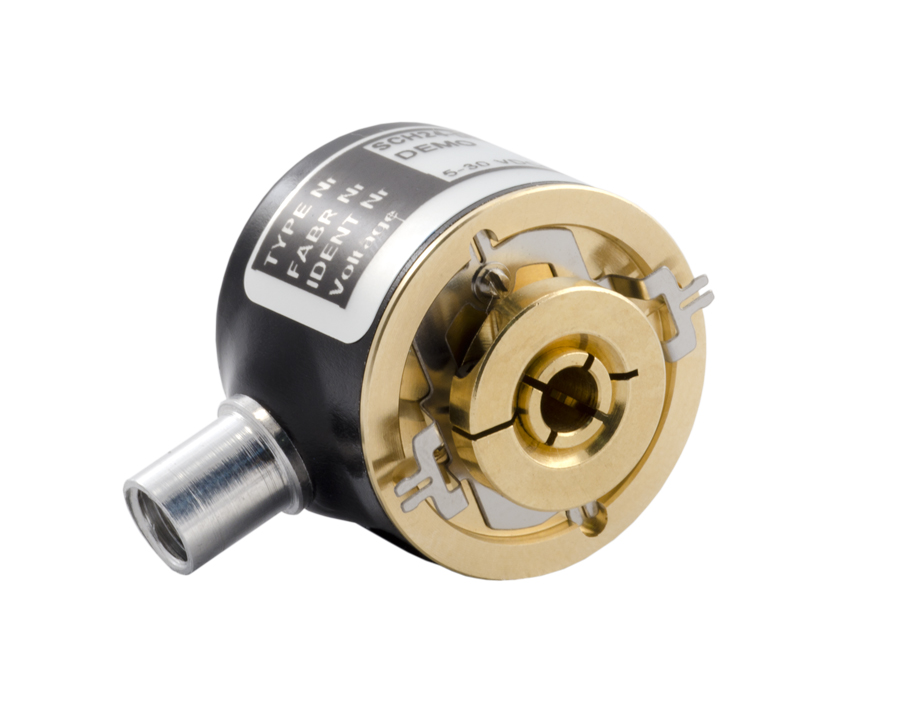

SCH24
Diameter:
24 mm
Resolution:
up to 7,500 ppr
Hollow Shaft:
ø 2 mm to 4 mm
IP rating:
64 (50 for IDC connector option)
Temperature:
-40° C to 85° C (operating)
2RMH-HD
Diameter:
24 mm
Resolution:
up to 7,500 ppr
Hollow Shaft:
ø 2 mm to 1/4 in
IP rating:
64 (50 for flat cable option)
Temperature:
-40° C to 85° C (operating)

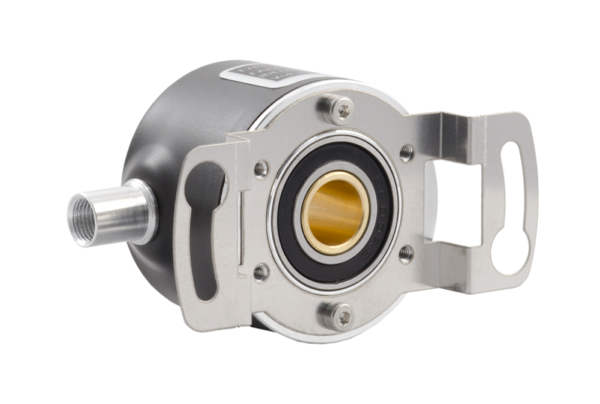

SCH32B
Diameter:
30 mm
Resolution:
up to 5,000 ppr
Hollow Shaft:
ø 6 mm to 3/8 in
IP rating:
65 (50 for IDC connector option)
Temperature:
-40° C to 85° C (operating)
SCH32F
Diameter:
32 mm
Resolution:
up to 5,000 ppr
Hollow Shaft:
ø 5 mm to 3/8 in
IP rating:
65 (50 for IDC connector option)
Temperature:
-40° C to 85° C (operating)
SCA50
Formerly named 2R
Diameter:
50 mm
Resolution:
up to 12,500 ppr
Shaft:
ø 6 mm to 12 mm
IP rating:
65 (67 option)
Temperature:
-40° C to 85° C (operating)

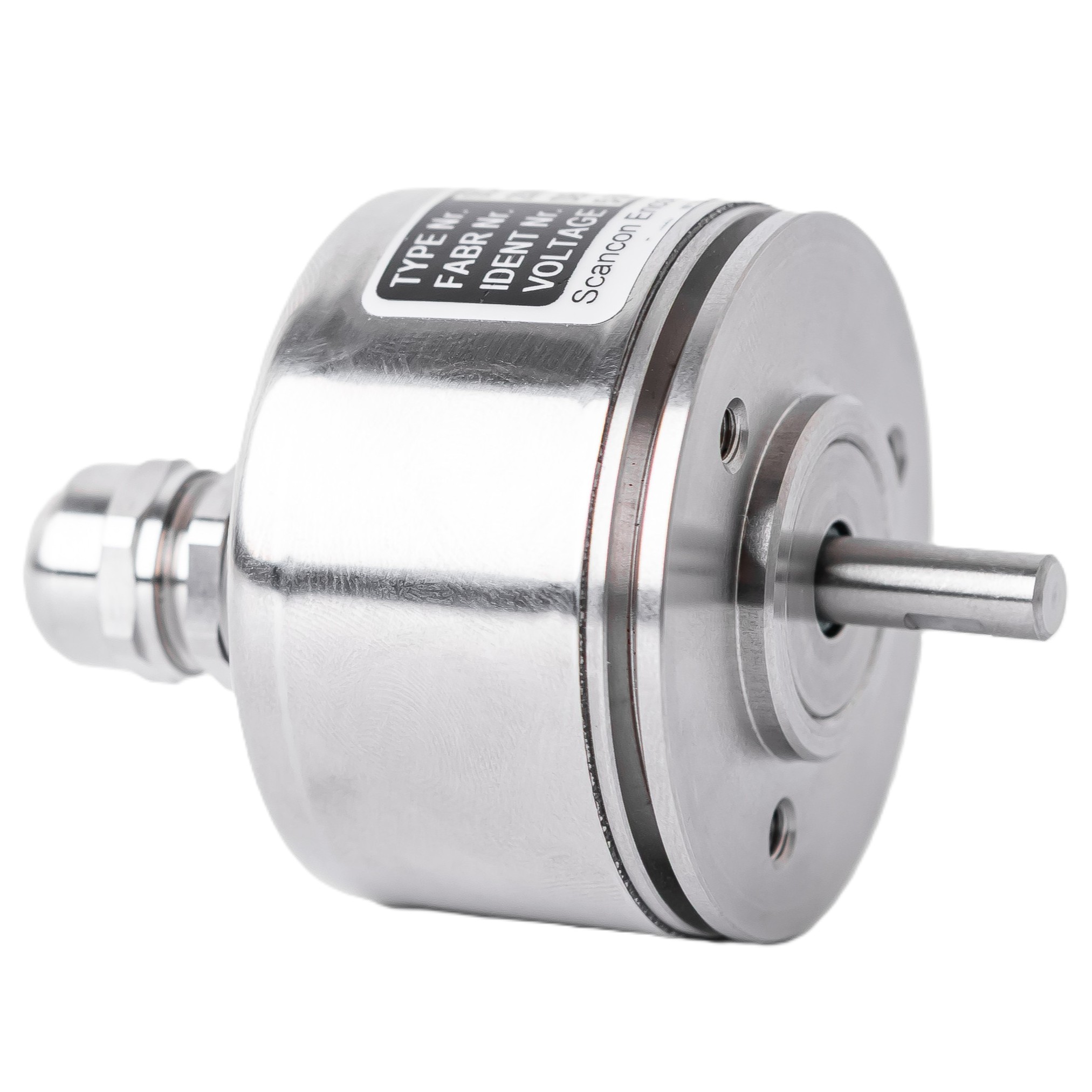

SCA50-SR
Formerly named 2RSR - Stainless Steel AISI 303
Diameter:
50 mm
Resolution:
up to 12,500 ppr
Shaft:
ø 6 mm to 10 mm
IP rating:
67 (Option 69)
Temperature:
-40° C to 85° C (operating)
SCA58
Formerly named 2RS
Diameter:
50 mm
Resolution:
up to 12,500 ppr
Shaft:
ø 6 mm to 10 mm
IP rating:
65 (67 option)
Temperature:
-40° C to 85° C (operating)
SCA58-G
Diameter:
50 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 1/4 in to 10 mm
IP rating:
65 (66 & 67 options)
Temperature:
-40° C to 85° C (operating)
2RK
Diameter:
58 mm
Resolution:
up to 12,500 ppr
Shaft:
ø 1/4 in to 10 mm
IP rating:
65 (67 option)
Temperature:
-40° C to 85° C (operating)
2R58
Diameter:
55 mm
Resolution:
up to 12,500 ppr
Shaft:
ø 6 mm to 10 mm
IP rating:
65 (67 option)
Temperature:
-40° C to 85° C (operating)

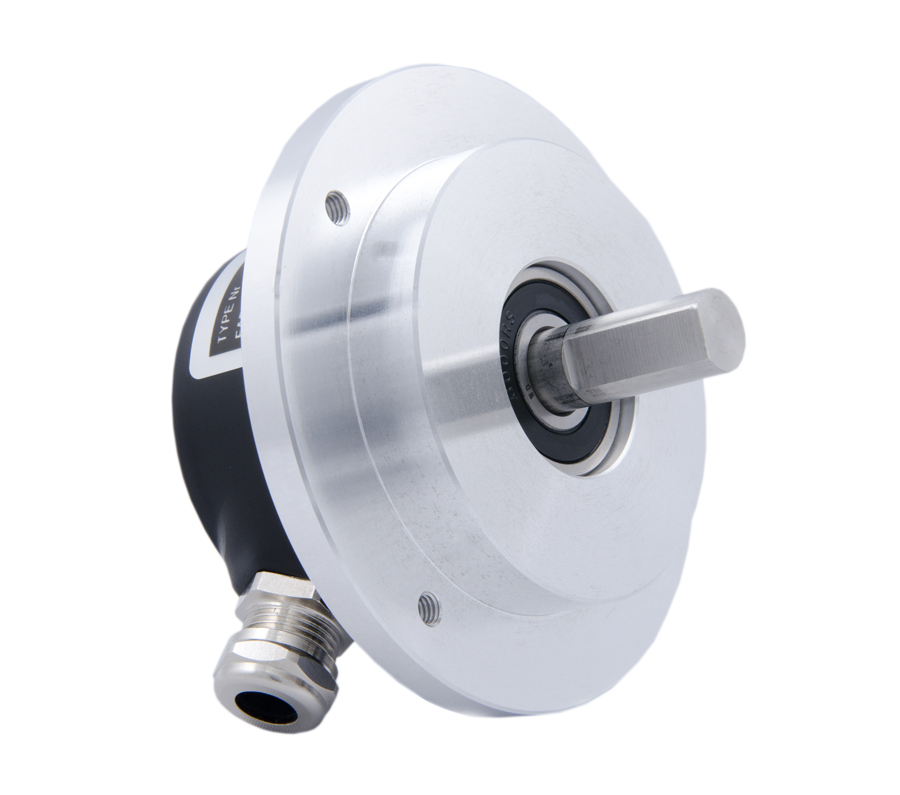

SCA80
Formerly named 2RP
Diameter:
80 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm
IP rating:
65
Temperature:
-40° C to 85° C (operating)
2Q
Diameter:
2.5 inch square
Resolution:
up to 10,000 ppr
Shaft:
ø 1/4 in to 10 mm
IP rating:
65 (66 & 67 option)
Temperature:
-40° C to 85° C (operating)

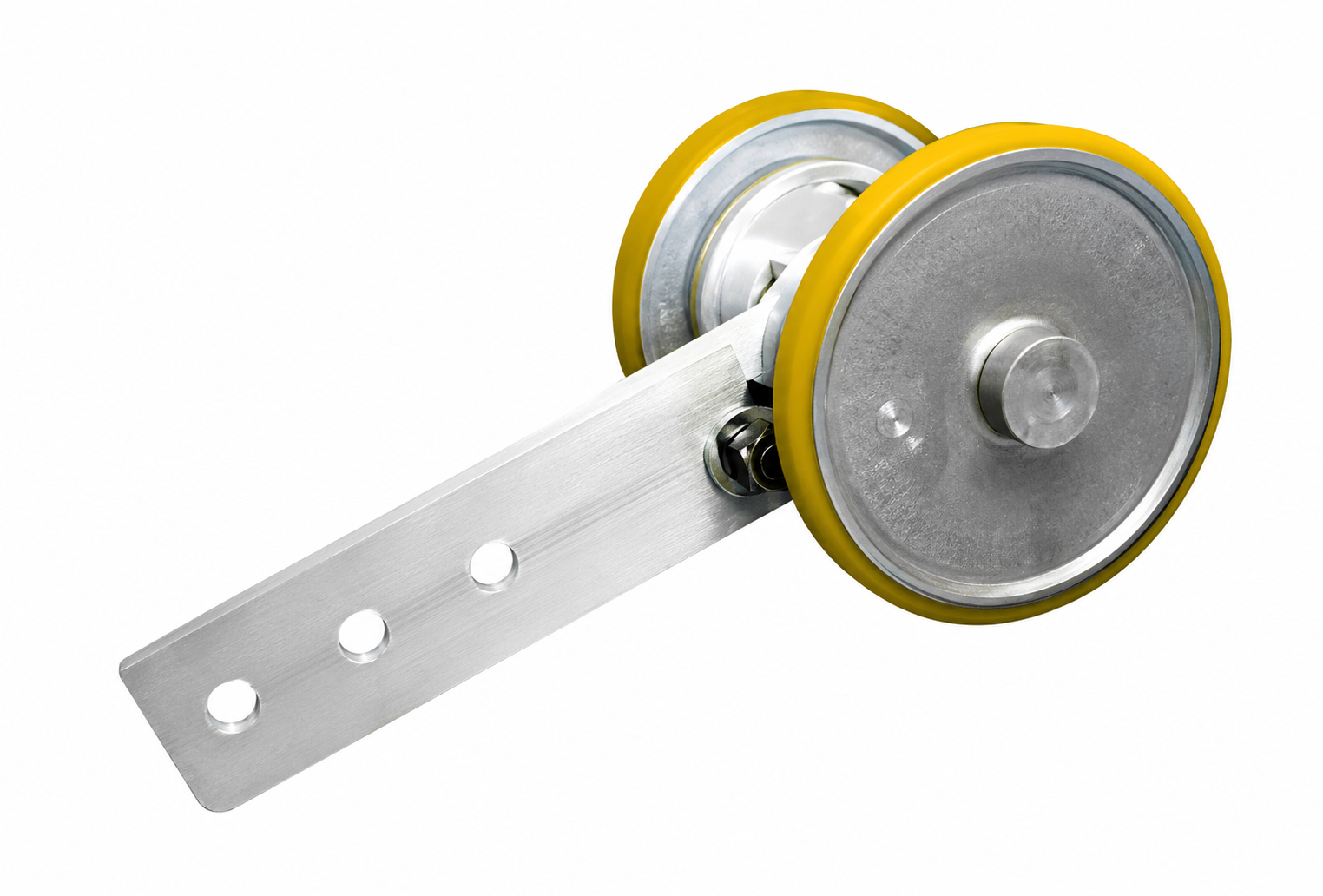

2RHIDS – Encoder with measuring wheel
Encoder with measuring wheel
Diameter:
Dual shaft encoder
Resolution:
up to 9,000 ppr
Shaft:
ø 3/8 in
IP rating:
64
Temperature:
-40° C to 75° C (operating)
Measuring wheel:
See accessories
SCH50B
Formerly named 2RH (Through hollow bore)
Diameter:
50 mm
Resolution:
up to 12,500 ppr
Hollow Shaft:
ø 6 mm and 8 mm
IP rating:
65
Temperature:
-40° C to 85° C (operating)

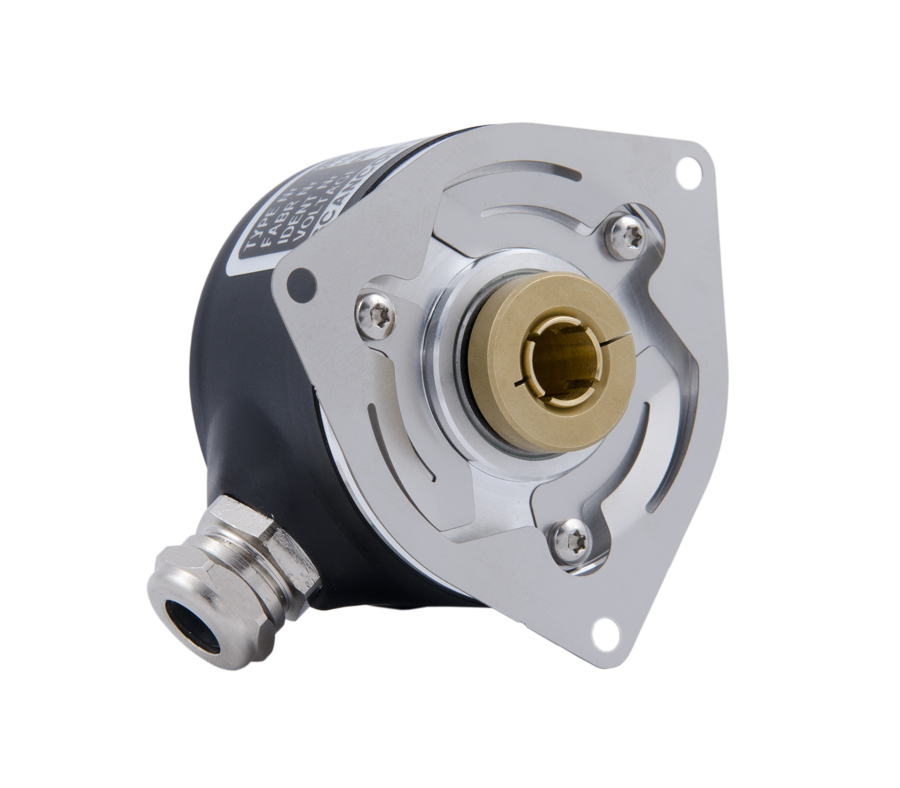

SCH50F
Formerly named 2RHF
Diameter:
50 mm
Resolution:
up to 12,500 ppr
Hollow Shaft:
ø 6 mm and 8 mm
IP rating:
65 (66 & 67 options)
Temperature:
-40° C to 85° C (operating)

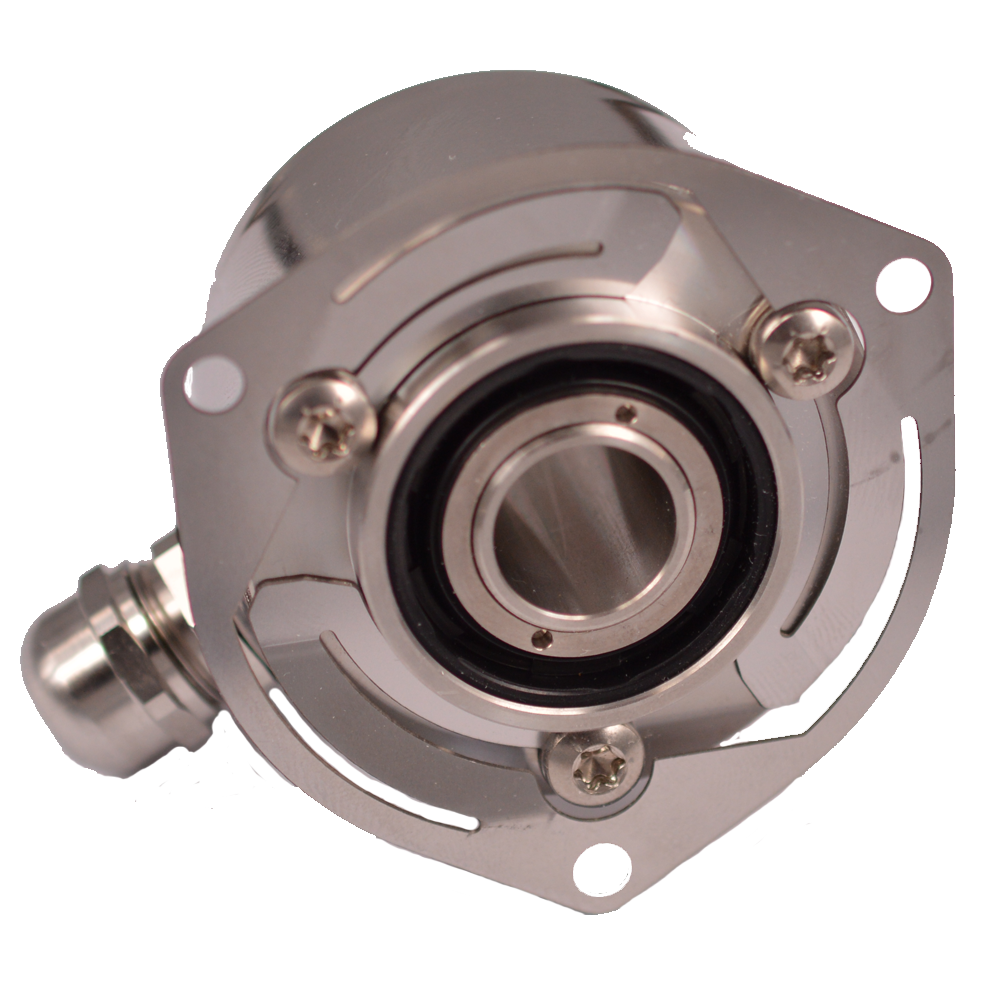

SCH50IB-SR
Stainless Steel - AISI 303
Diameter:
50 mm
Resolution:
up to 9,000 ppr
Hollow Shaft:
ø 8 mm to 16 mm
IP rating:
67
Temperature:
-40° C to 85° C (operating)
SCH50IF-SR
Formerly named 2RHIF-SR Stainless Steel - AISI 303
Diameter:
50 mm
Resolution:
up to 9,000 ppr
Hollow Shaft:
ø 8 mm to 16 mm
IP rating:
IP 67
Temperature:
-40° C to 85° C (operating)

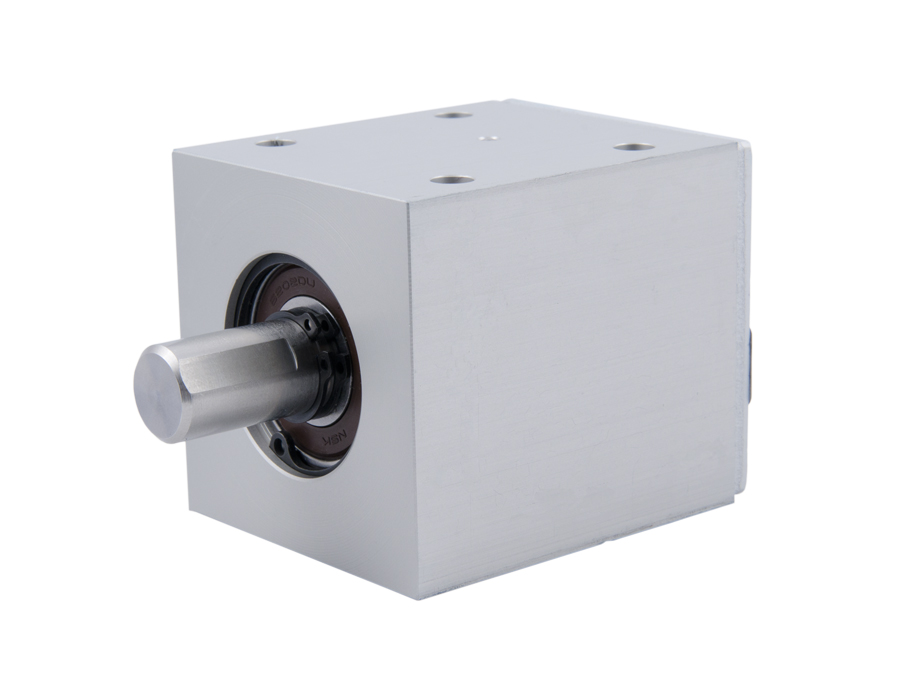

2RMHD
Diameter:
60 mm square
Resolution:
up to 7,500 ppr
Shaft:
ø 12 mm and 15 mm
IP rating:
65
Temperature:
-40° C to 85° C (operating)

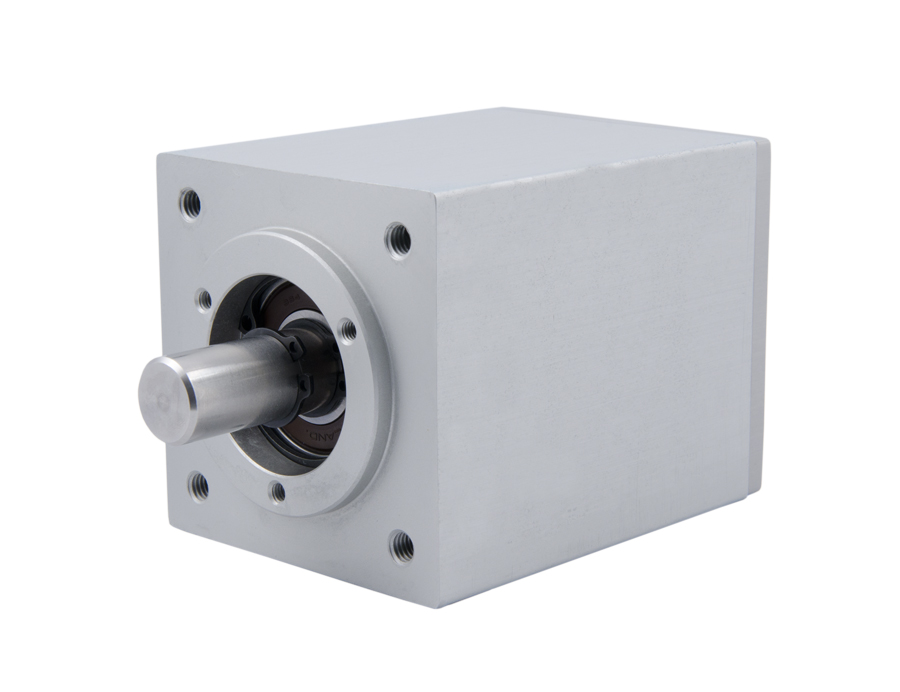

2RHDS
Diameter:
70 mm square
Resolution:
up to 12,500 ppr
Shaft:
ø 12 mm to 15 mm
IP rating:
65 (67 & 68 option)
Temperature:
-40° C to 85° C (operating)
SCH68B
through hollow bore
Diameter:
68 mm
Resolution:
up to 12,500 ppr
IP rating:
65 (66 & 67 option)
Temperature:
-40° C to 85° C (operating)
Hollow Shaft:
ø 16 mm to 1 in
SCH80
Diameter:
80 mm
Resolution:
up to 12,500 ppr
Hollow Shaft:
ø 16 mm
IP rating:
66 (65 & 67 option)
Temperature:
-40° C to 85° C (operating)
SCH120M
Magnetic
Resolution:
up to 8192 ppr
IP rating:
66
Temperature:
-40° C to +105° C (operating)
Length:
120 mm

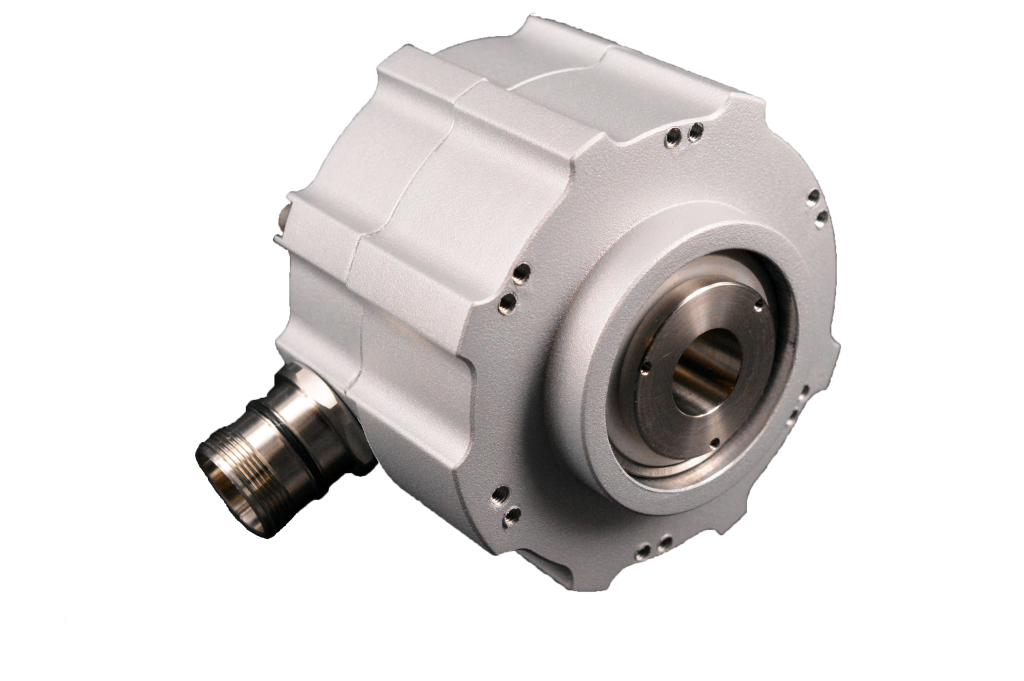

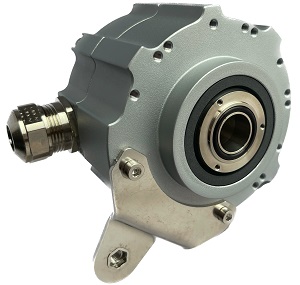

SCH98M
Hollow bore
Diameter:
98 mm
Resolution:
up to 8192 ppr
IP rating:
66
Temperature:
-40° C to +105° C (operating)
Hollow Shaft:
ø 12 mm to ø 17 mm
SCH98M-01
Hollow bore
Diameter:
98 mm
Resolution:
up to 8192 ppr
IP rating:
66
Temperature:
-40° C to +105° C (operating)
Hollow Shaft:
ø 12 mm to ø 17 mm

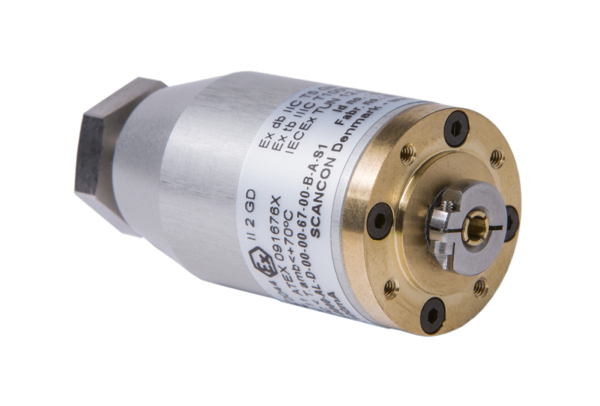

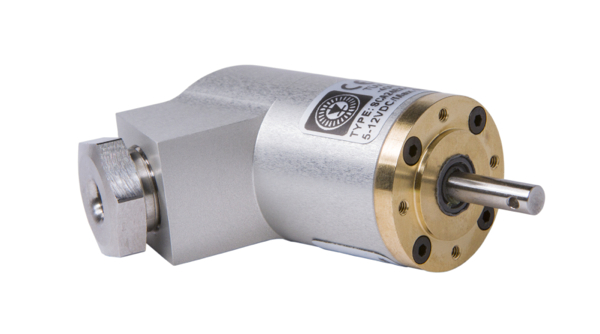

SCA24EX
Formerly named 2MCEX-A
Diameter:
24 mm
Resolution:
up to 3,600 ppr
Shaft:
ø 4 mm to ø 6 mm
IP rating:
67 (64, 65 & 66 options)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC
2QEX-A
Diameter:
2.5 in or 2.65 in square
Resolution:
up to 12,500 ppr
Shaft:
ø 1/4 in to 10 mm
IP rating:
67
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex nA IIC

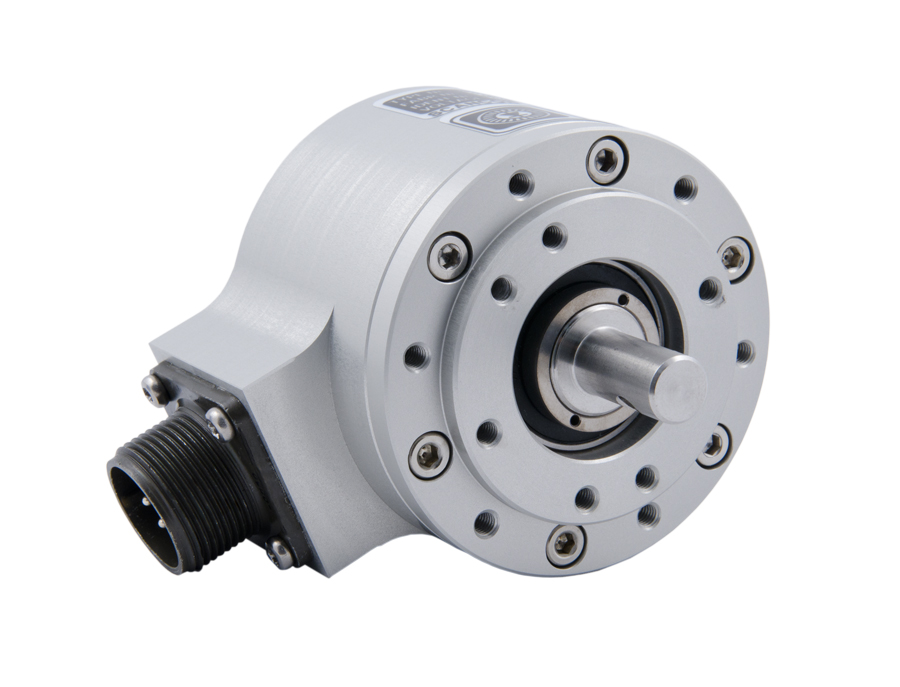

2CEX-A
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm
IP rating:
64 (65, 66 & 67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex nA IIC

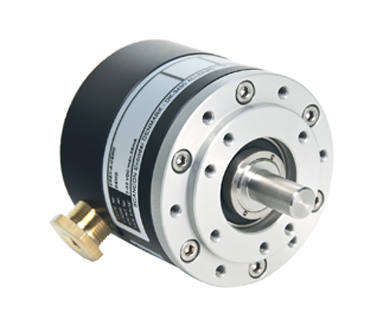

2REX-A
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm and 5/8 in
IP rating:
66 (64, 65 & 67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC

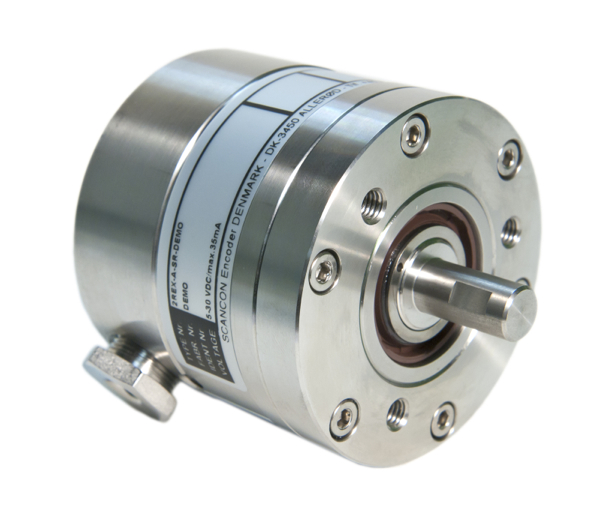

2REX-A-SA
Stainless Steel AISI 316
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm to 11 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC

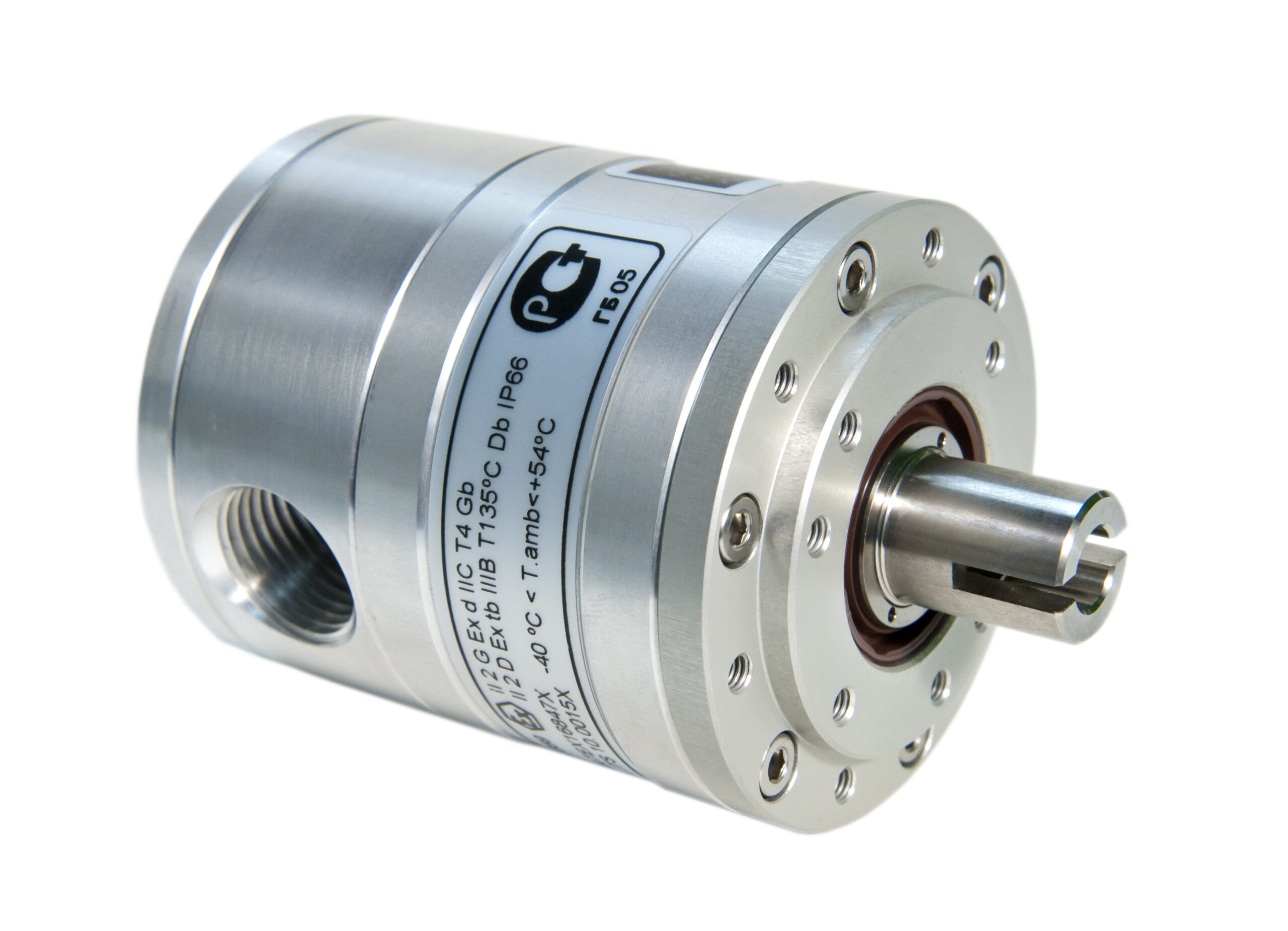

2REXI-A
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm to 11 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 75° C (operating)
Certifications:
Ex db IIB
2REXI-A-SA
Stainless Steel AISI 316
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 8 mm to 16 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 75° C (operating)
Certifications:
Ex db IIB
SCH24EX
Formerly named 2MCEX-H
Diameter:
24 mm
Resolution:
up to 3,600 ppr
Hollow Shaft:
ø 2 mm to 1/8 in
IP rating:
67 (64, 65 & 66 options)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC

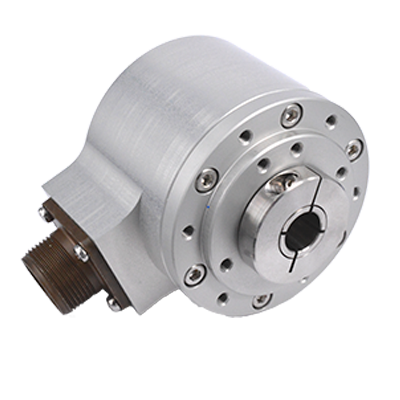

2CEX-H
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø10 mm and ø16 mm
IP rating:
64 (65, 66 & 67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex nA IIC

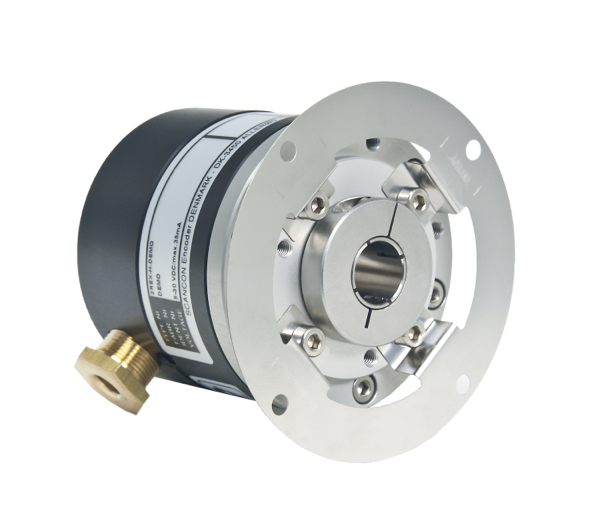

2REX-H
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 10 mm to 15 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC

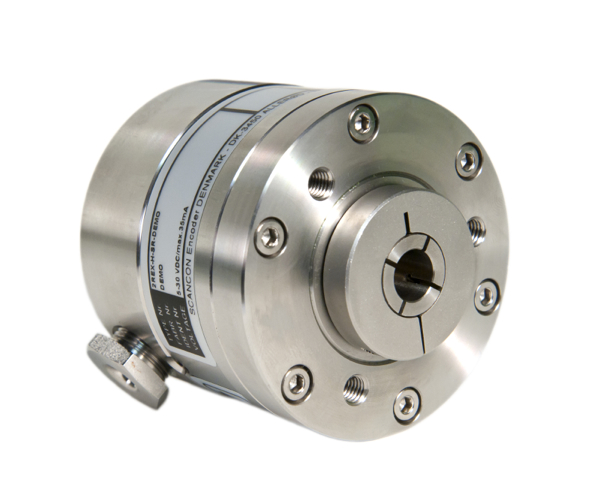

2REX-H-SA
Stainless Steel AISI 316
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 10 mm to 15 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC
2REXI-H
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 8 mm
IP rating:
65 (66 & 67 option)
Temperature:
-40° C to 75° C (operating)
Certifications:
Ex db IIB

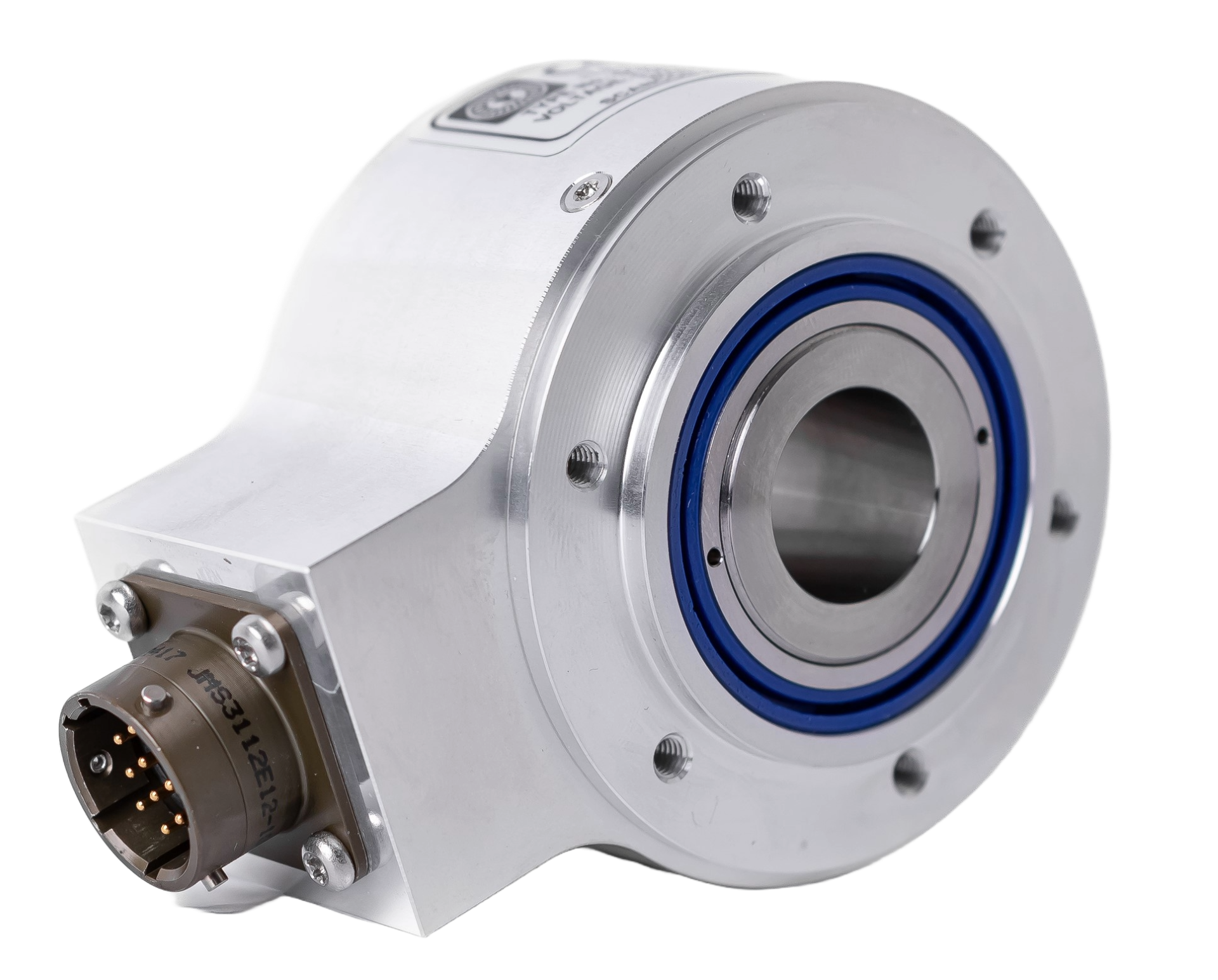

SCH86BEX
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 5/8 in to 1 in
IP rating:
67 (65 & 66 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC Class I Div. 2, Zone 1
SCH86BEX-Magnetic
Diameter:
86 mm
Resolution:
up to 8192 ppr
Hollow Shaft:
ø 5/8 in to 1 in
IP rating:
67 (65, 66, 68 option)
Temperature:
-50° C to 70° C (operating)
Certifications:
Ex db IIC Class I Div. 2, Zone 1

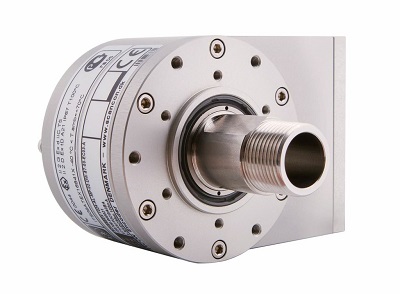

SCH86BEX DrawWorks Removable End Cap
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
Standard 1 in - 14UNS threaded bore
IP rating:
67 (65 & 66 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC Class I Div. 2, Zone 1

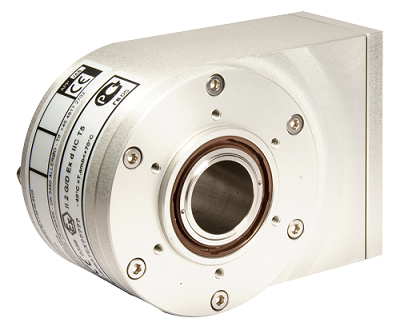

SCH86BEX-FO
Fiber optic encoder
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 5/8 in to 1 in
IP rating:
67 (65 & 66 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC Class I Div. 2, Zone 1

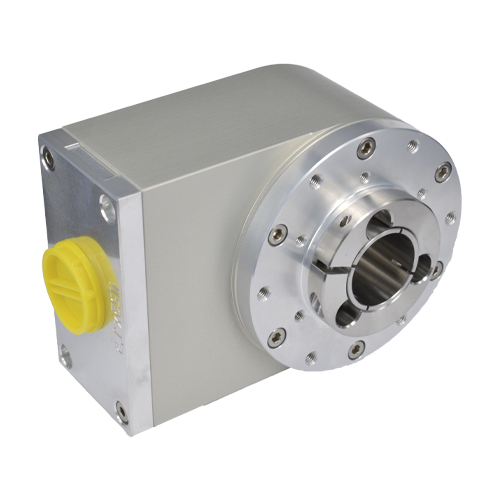

SCH86FEX
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 20 mm to 1 in
IP rating:
67 (65 & 66 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC, Class I Div. 2, Zone 1

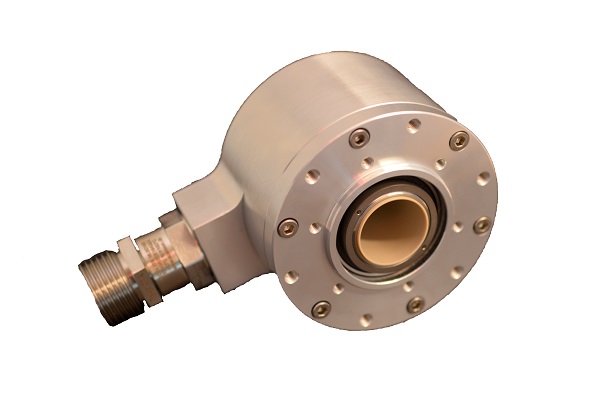

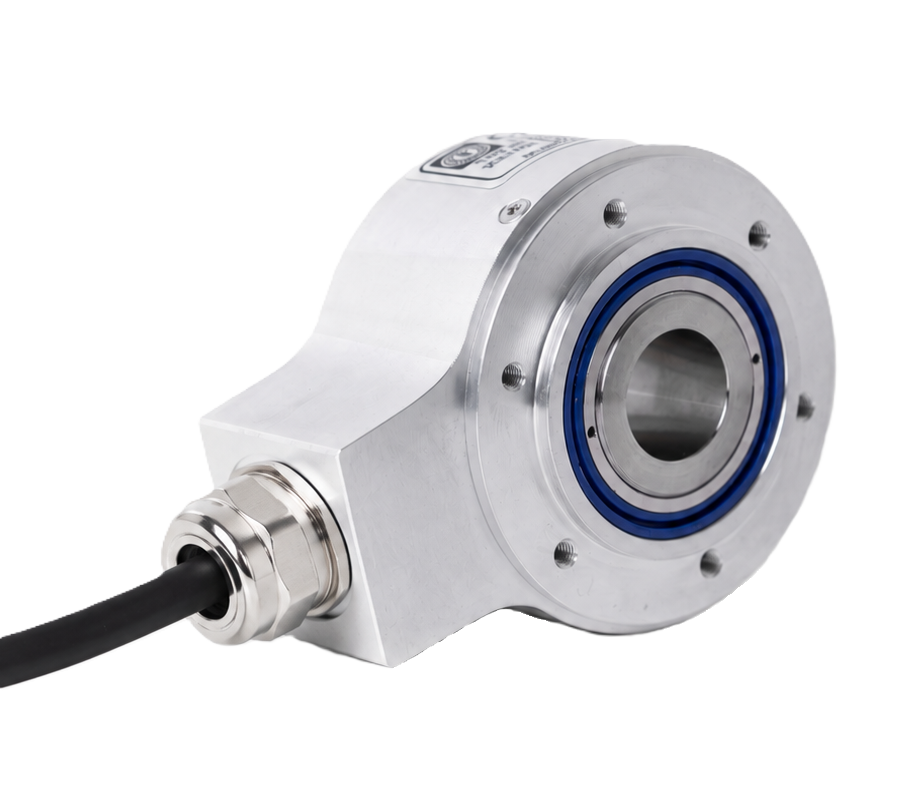

SCH86BEX with Cable
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 5/8 in to 1 in
IP rating:
67 (65 & 66 option)
Temperature:
-40° C to 70° C (operating)
Certifications:
Ex db IIC, Class I Div. 2, Zone 2, Group IIC
REXM-A-SA
Stainless Steel - For mining applications
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Shaft:
ø 10 mm to 11 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 70° C (operating)
Certificates:
Ex db I Mb
REXM-H-SA
Stainless Steel - For mining applications
Diameter:
68 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
ø 10 mm to 15 mm
IP rating:
66 (67 option)
Temperature:
-40° C to 70° C (operating)
Certificates:
Ex db I Mb
SCH86BXM
Stainless Steel - For mining application
Diameter:
86 mm
Resolution:
up to 10,000 ppr
Hollow Shaft:
Ø 5/8 in to 1 in
IP rating:
65 (66 & 67 options)
Temperature:
-40° C to 70° C (operating)
Certificates:
Ex db I Mb
Built for the Toughest
Industrial Environments
SCANCON encoders are designed to perform reliably in the demanding conditions found throughout the steel industry. From extreme temperatures and heavy vibration to dust, moisture and continuous operation, our solutions help minimise downtime and ensure accurate feedback where it matters most.
