2RHDS

Incremental and absolute encoders SCANCON
Diameter 70 mm square
Resolution up to 12,500 ppr
Shaft ø 12 mm to 15 mm
Temperature -40° C to 85° C (operating)
IP rating 65 (67 & 68 option)
Certificate 0
Specifications
DOC

Accessories

SCH68B

through hollow bore
Incremental and absolute encoders SCANCON
Diameter 68 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 16 mm to 1 in
Temperature -40° C to 85° C (operating)
IP rating 65 (66 & 67 option)
Certificate 0
Specifications
DOC

Accessories

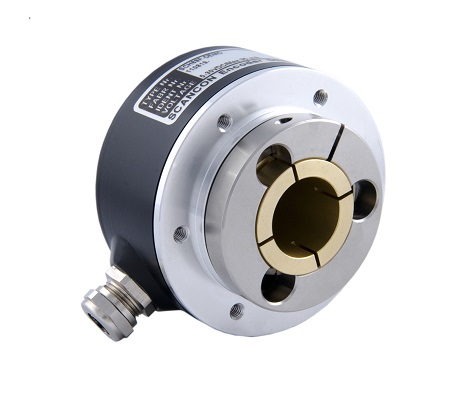

SCH68F

Incremental and absolute encoders SCANCON
Diameter 68 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 20 mm and 1 in
Temperature -40° C to 85° C (operating)
IP rating 65 (66 & 67 option)
Certificate 0
Specifications
DOC

Accessories

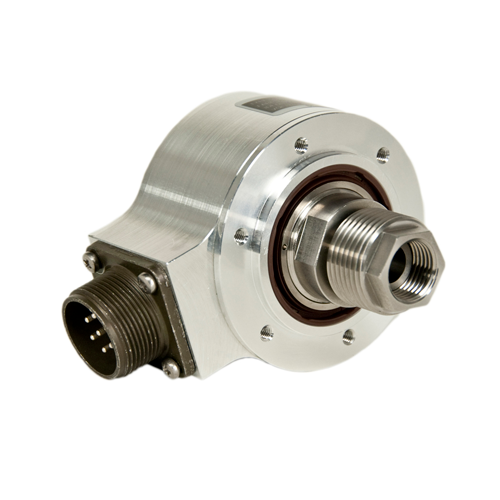

SCH68DW

through hollow bore w/ adaptor, Drawwire
Incremental and absolute encoders SCANCON
Diameter 68 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 20 mm and 1 in
Temperature -40° C to 85° C (operating)
IP rating 65 (66 & 67 option)
Certificate 0
Specifications
DOC

Accessories

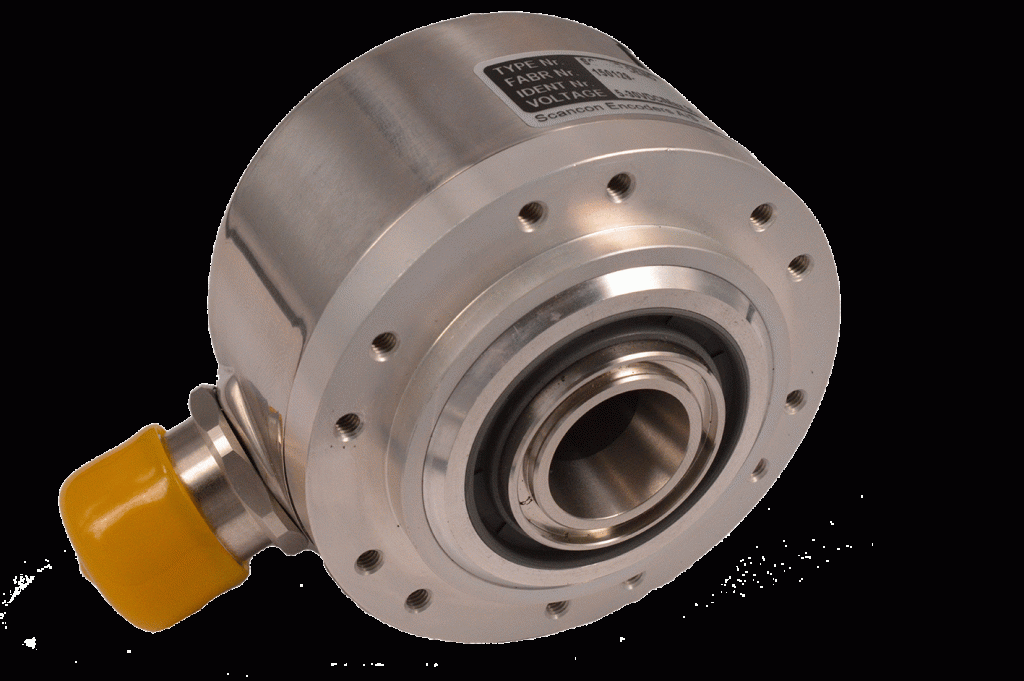

SCH80

Incremental and absolute encoders SCANCON
Diameter 80 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 16 mm
Temperature -40° C to 85° C (operating)
IP rating 66 (65 & 67 option)
Certificate 0
Specifications
DOC
Accessories

SCH94

Cylindrical and cone - Screw mount
Incremental and absolute encoders SCANCON
Diameter 94 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 12 mm to 17 mm
Temperature -40° C to 85° C (operating)
IP rating 66 (65 & 67 options)
Certificate 0
Specifications
DOC
Accessories

SCH94DOL

Dual output (redundant electronic)
Incremental and absolute encoders SCANCON
Diameter 94 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 16 mm
Temperature -40° C to 85° C (operating)
IP rating 66 (65 & 67 option)
Certificate 0
Specifications
DOC
Accessories

SCH94L

Deep hollow bore - Front mounted
Incremental and absolute encoders SCANCON
Diameter 94 mm
Resolution up to 12,500 ppr
Hollow Shaft ø 16 mm
Temperature -40° C to 85° C (operating)
IP rating 66 (65 & 67 option)
Certificate 0
Specifications
DOC
Accessories

SCH120M

Magnetic
Incremental and absolute encoders SCANCON
Length 120 mm
Resolution up to 8192 ppr
Temperature -40° C to +105° C (operating)
IP rating 66
Certificate 0
Specifications

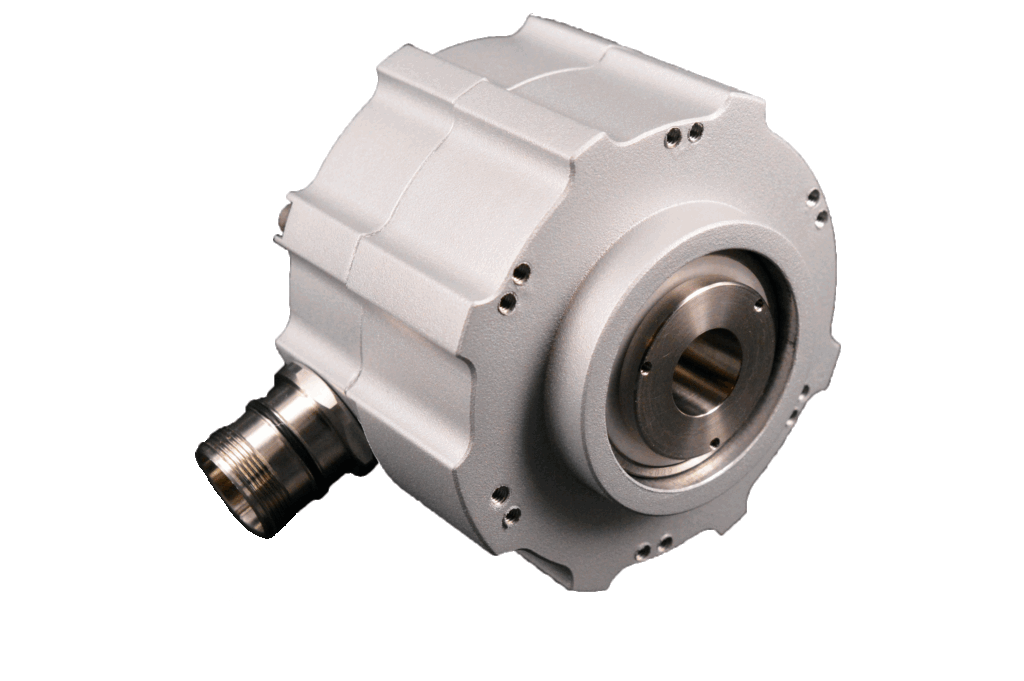

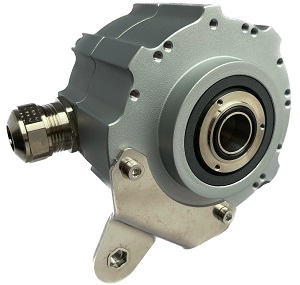

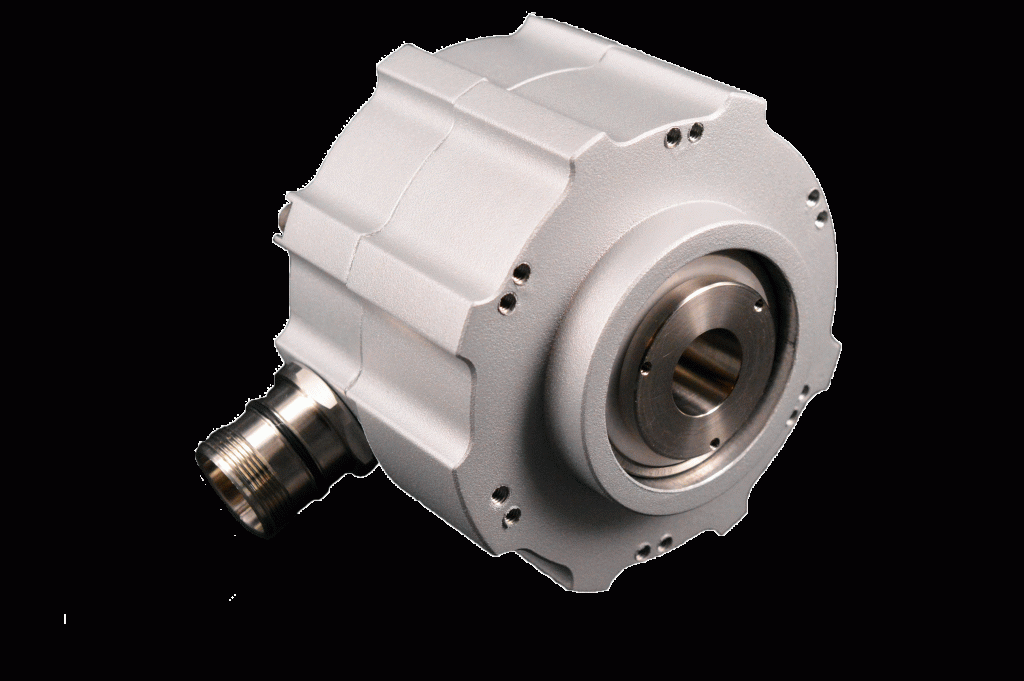

SCH98M

Hollow bore
Incremental and absolute encoders SCANCON
Diameter 98 mm
Resolution up to 8192 ppr
Hollow Shaft ø 12 mm to ø 17 mm
Temperature -40° C to +105° C (operating)
IP rating 66
Certificate 0
Specifications
DOC
