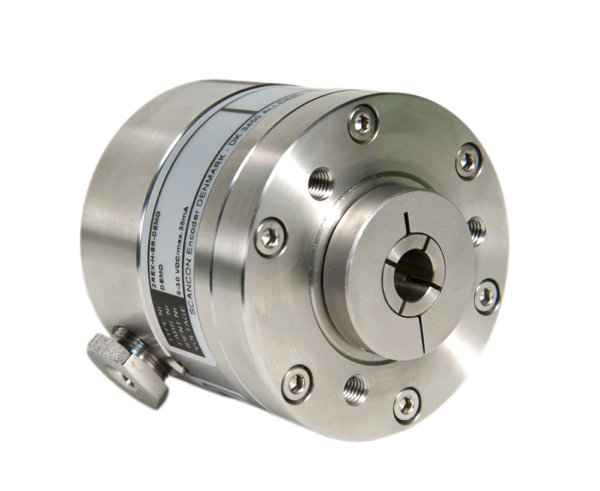

2REX-H-SR
.svg)
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm to 15 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIC
2REX-H-SA
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 10 mm to 15 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certifications
Ex db IIC
2REXI-H
Diameter
68 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 8 mm
Temperature
-40° C to 75° C (operating)
IP rating
65 (66 & 67 option)
Certifications
Ex db IIB
SCH86BEX
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 5/8 in to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1
SCH86BEX-Magnetic
Diameter
86 mm
Resolution
up to 8192 ppr
Hollow Shaft
ø 5/8 in to 1 in
Temperature
-50° C to 70° C (operating)
IP rating
67 (65, 66, 68 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1

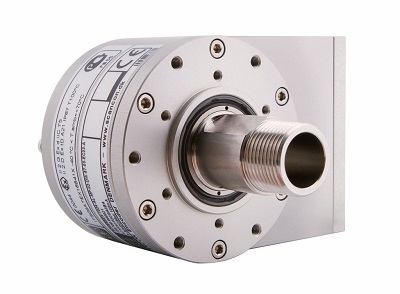

SCH86BEX DrawWorks Removable End Cap
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
Standard 1 in - 14UNS threaded bore
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1

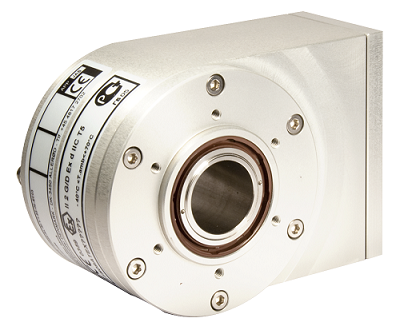

SCH86BEX-FO
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 5/8 in to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC Class I Div. 2, Zone 1

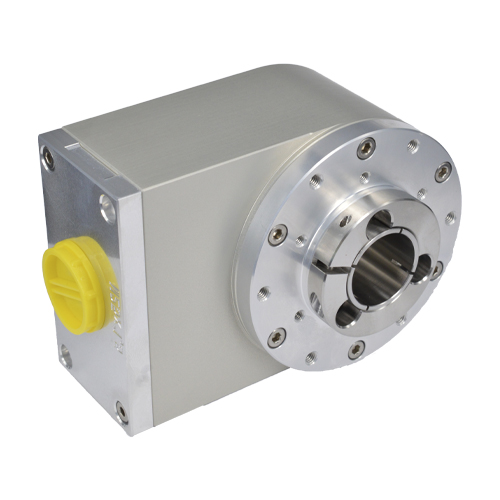

SCH86FEX
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 20 mm to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC, Class I Div. 2, Zone 1

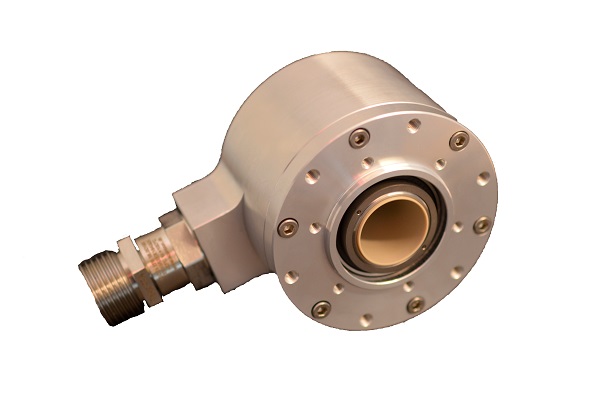

SCH86BEX with Cable
Diameter
86 mm
Resolution
up to 10,000 ppr
Hollow Shaft
ø 5/8 in to 1 in
Temperature
-40° C to 70° C (operating)
IP rating
67 (65 & 66 option)
Certifications
Ex db IIC, Class I Div. 2, Zone 2, Group IIC

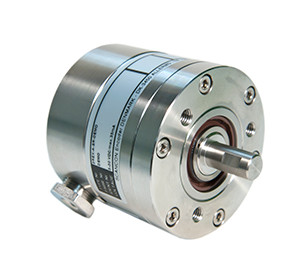

REXM-A-SR
Diameter
68 mm
Resolution
up to 10,000 ppr
Shaft
ø 10 mm to 11 mm
Temperature
-40° C to 70° C (operating)
IP rating
66 (67 option)
Certification
Ex db I Mb
