Encoders for the wind industry
Scancon has provided encoder solutions to the Wind Industry for over a decade. Known for its design expertise, Scancon offers not only standard Wind Industry encoders but also a variety of innovative incremental, absolute, Fiber Optic, and Intelligent encoder solutions.
Encoders and sensors for wind energy applications
Experience the power of wind encoders – precision technology designed to capture the essence of every gust. Our wind encoders provide unparalleled accuracy, ensuring you harness the true potential of wind energy. Elevate your projects with cutting-edge solutions that redefine performance and reliability. Embrace the future of renewable energy with our advanced wind encoders.
Boost wind power plant efficiency and extend its lifespan with our dependable encoder solutions. Our advanced components are intricately designed for seamless integration—mechanically, electrically, and with the right signals and interfaces—simplifying the path to digitalization. This synergy optimizes performance. Invest in groundbreaking technology for a greener and more sustainable future.
Different wind applications and recommendations for Pitch Control Systems, their Yaw Control Systems, and for their Generator feedback.
Contact us here: sales-hq@scancon.dk or direct: +45 4817 2702

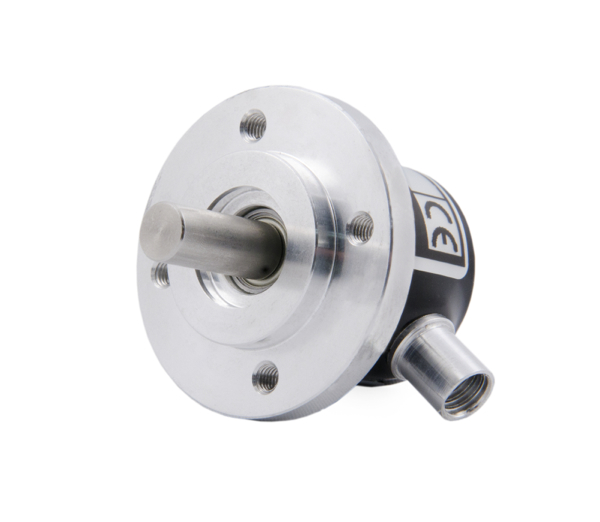

SCA24
Diameter
24 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
65
.svg "Encoders - Wind Power 9")
Diameter
24 mm
Resolution
Up to 7,500 ppr
Shaft
Ø 2.0 mm to 6.4 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65, 50
*notice, only works underwater
SCH32B
Diameter
30 mm
Resolution
up to 5,000 ppr
Hollow Shaft
ø 6 mm to 3/8 in
Temperature
-40° C to 85° C (operating)
IP rating
65 (50 for IDC connector option)
Diameter
30 mm
Resolution
Up to 5,000 ppr
Hollow shaft
Ø 6.0 mm to 9.5 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65, 50
SCH32F
Diameter
32 mm
Resolution
up to 5,000 ppr
Hollow Shaft
ø 5 mm to 3/8 in
Temperature
-40° C to 85° C (operating)
IP rating
65 (50 for IDC connector option)
Diameter
32 mm
Resolution
Up to 5,000 ppr
Hollow shaft
Ø 5.0 mm to 9.5 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65, 50

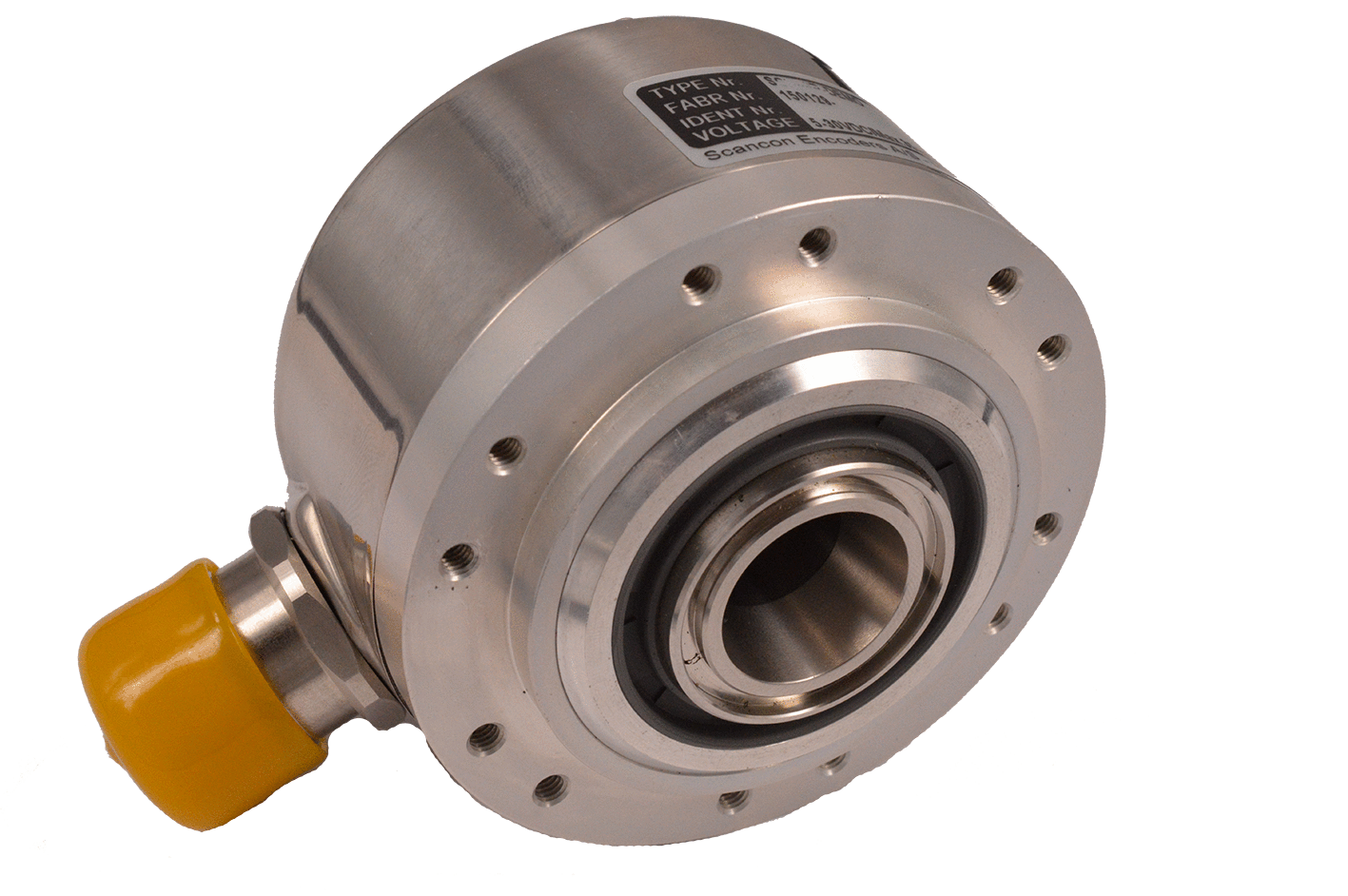

SCH80
Diameter
80 mm
Resolution
up to 12,500 ppr
Hollow Shaft
ø 16 mm
Temperature
-40° C to 85° C (operating)
IP rating
66 (65 & 67 option)
Diameter
80 mm
Resolution
Up to 12,500 ppr
Hollow shaft
Ø 16.0 mm to 17.0 mm
Temperature
-40° C to 85° C (operating)
IP Rating
66, 65, 67

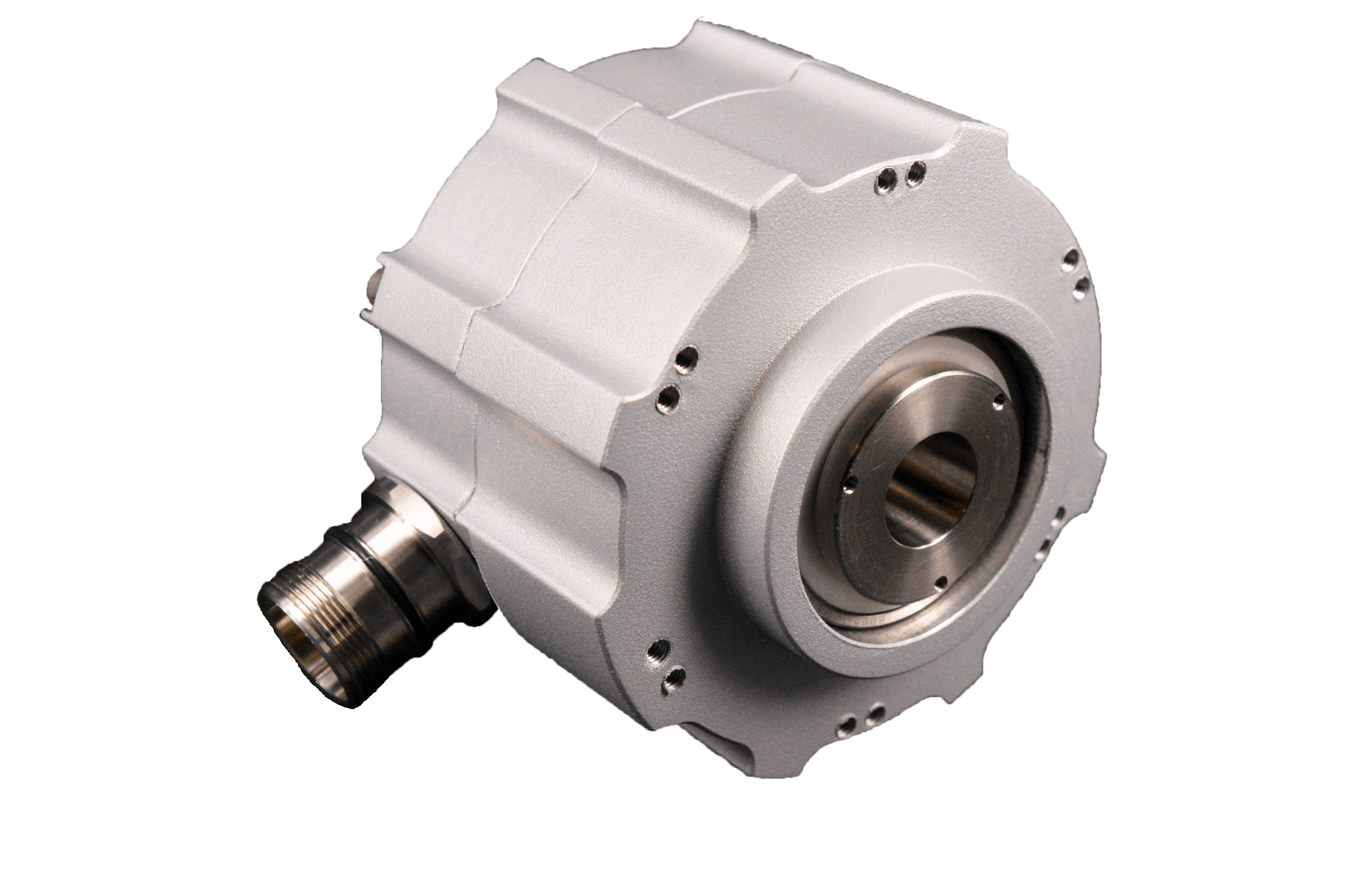

SCH98M
Diameter
98 mm
Resolution
up to 8192 ppr
Hollow Shaft
ø 12 mm to ø 17 mm
Temperature
-40° C to +105° C (operating)
IP rating
66
Diameter
98 mm
Resolution
Up to 8,192 ppr
Temperature
-40° C to 105° C (operating)
Hollow shaft
Ø 12.0 mm to 17.0 mm
IP Rating
66
SCH98M-01
Diameter
98 mm
Resolution
up to 8192 ppr
Hollow Shaft
ø 12 mm to ø 17 mm
Temperature
-40° C to +105° C (operating)
IP rating
66
Diameter
98 mm
Resolution
Up to 8,192 ppr
Temperature
-40° C to 105° C (operating)
Hollow shaft
Ø 12.0 mm to 17.0 mm
IP Rating
66
SCH94FO
Diameter
94 mm
Resolution
up to 12.500 ppr
Hollow Shaft
ø 12 mm to ø 17 mm
Temperature
-40° C to 85° C (operating)
IP rating
65 (66)
Diameter
94 mm
Resolution
Up to 12,500 ppr
Hollow shaft
Ø 12.0 mm to 17.0 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65, 66
SCA94DD
Diameter
94 mm
Resolution
Semi-absolute singleturn
Shaft
ø 10 mm
Protocol
Profibus
Temperature
-40° C to 70° C (operating)
IP rating
67 / Nema 6 (approx.)
Diameter
94 mm
Shaft
Ø 10.0 mm
Temperature
-40° C to 70° C (operating)
IP Rating
67, 66
