When Size Matters
Scancon has manufactured industrial encoders for over 25 years for applications in the Food and Beverage, Machining, Packaging, Elevator, Crane, and Semiconductor industries as well as many others. Modern industrial designs demand smaller package sizes as well as high performance. Scancon specializes in offering its customers a range of ultra-small encoders that provide the industry’s highest disk resolution.
Contact us here: sales-hq@scancon.dk or direct: +45 4817 2702
SCA16
.svg "Encoders - Automated Machinery 8")
Diameter
16 mm
Resolution
up to 5,000 ppr
Shaft
ø 1,5 mm to 4 mm
Temperature
-20° C to 70° C (operating)
IP rating
50, 65
SCH16F
Diameter
16 mm
Resolution
up to 5,000 ppr
Hollow Shaft
ø 1,5 mm to 1/8 in
Temperature
-20° C to 70° C (operating)
IP rating
50
This is a pre-production product
SCA24
Diameter
24 mm
Resolution
up to 7,500 ppr
Shaft
ø 4 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
IP rating
65
*notice, only works underwater

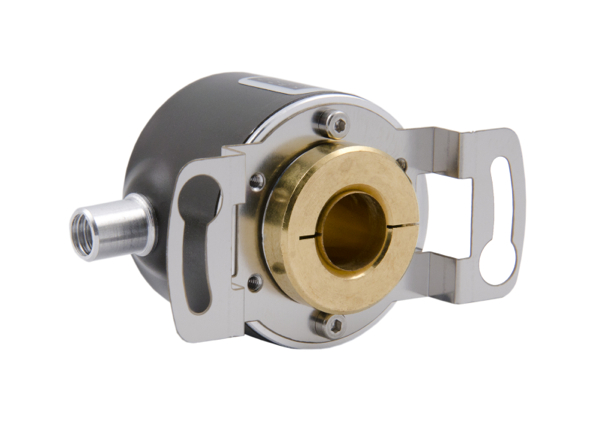

SCH32F
Diameter
32 mm
Resolution
up to 5,000 ppr
Hollow Shaft
ø 5 mm to 3/8 in
Temperature
-40° C to 85° C (operating)
IP rating
65 (50 for IDC connector option)

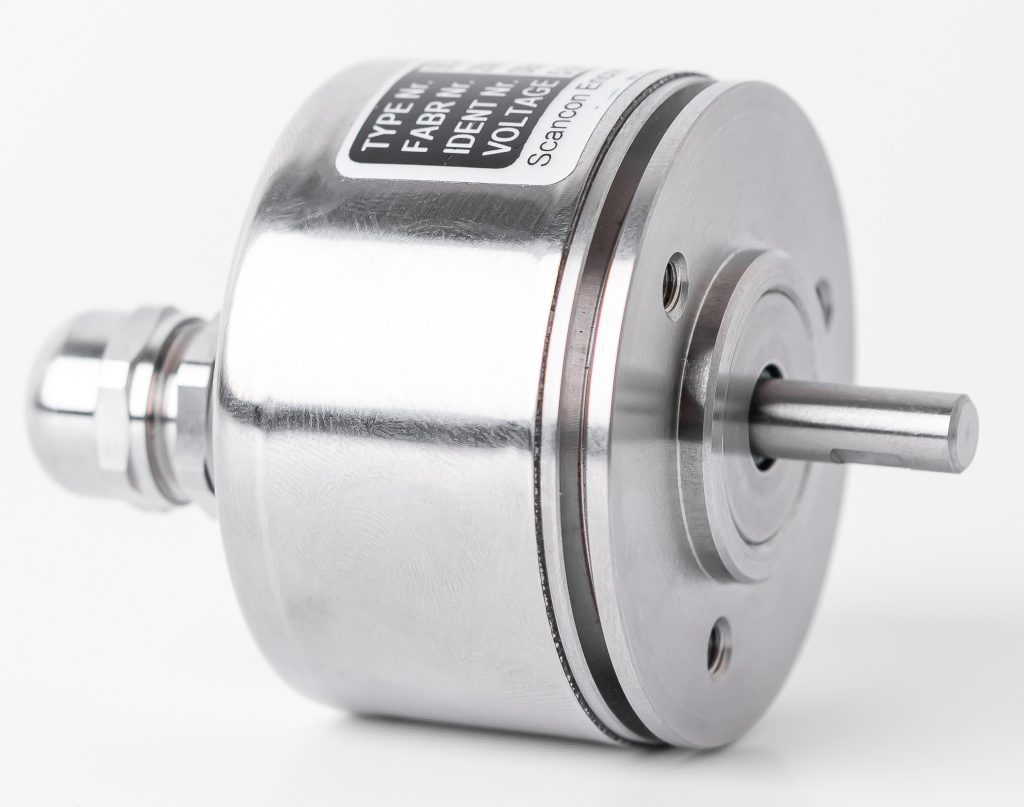

SCA50-SR
Diameter
50 mm
Resolution
up to 12,500 ppr
Shaft
ø 6 mm to 10 mm
Temperature
-40° C to 85° C (operating)
IP rating
67 (Option 69)
Accessories
- See Flange – SCA50 (pdf)
- See Spring couplings – SCA50 (pdf)
- See Coupling (plastic) – SCA50 (pdf)
- See Coupling (spring) – SCA50 (pdf)
- See Coupling – SCA50 (pdf)
- See Measuring Wheel 12″ – SCA50 (pdf)
- See Measuring Wheel 200mm – SCA50 (pdf)
- See Measuring Wheel 500mm – SCA50 (pdf)
- See Connections M12 – SCA50 (pdf)
- See Connections M23 – SCA50 (pdf)
- See Connections Mill – SCA50 (pdf)
2Q
Diameter
2.5 inch square
Resolution
up to 10,000 ppr
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 85° C (operating)
IP rating
65 (66 & 67 option)
Accessories
- See Flange – SCA50 (pdf)
- See Spring couplings – SCA50 (pdf)
- See Coupling (plastic) – SCA50 (pdf)
- See Coupling (spring) – SCA50 (pdf)
- See Coupling – SCA50 (pdf)
- See Measuring Wheel 12″ – SCA50 (pdf)
- See Measuring Wheel 200mm – SCA50 (pdf)
- See Measuring Wheel 500mm – SCA50 (pdf)
- See Connections M12 – SCA50 (pdf)
- See Connections M23 – SCA50 (pdf)
- See Connections Mill – SCA50 (pdf)

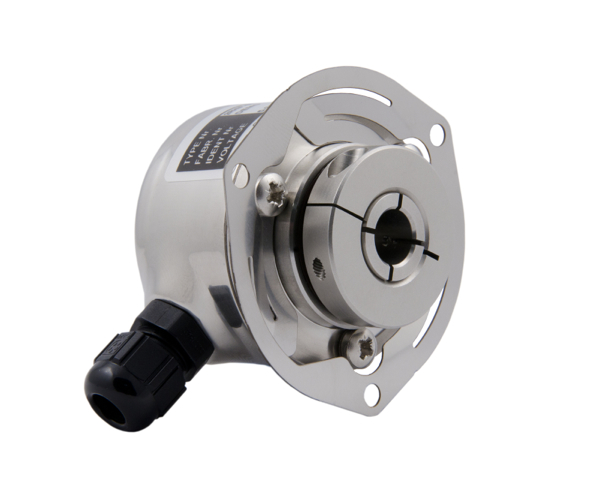

SCH50IF-SR
Diameter
50 mm
Resolution
up to 9,000 ppr
Hollow Shaft
ø 8 mm to 16 mm
Temperature
-40° C to 85° C (operating)
IP rating
IP 67
