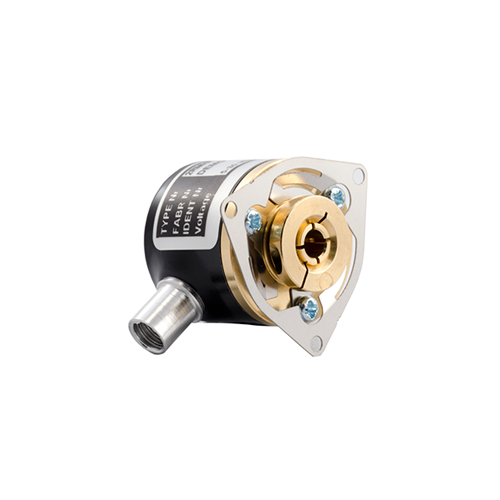

SCH24AV Analog
Diameter
24 mm
Resolution
0 – 5V or 0 – 10V
Hollow Shaft
ø 2 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
Protocol
Analog - Voltage
2RMHF SSI
Diameter
24 mm
Resolution
13 bits (Singelturn) / up to 37 bits (Multiturn)
Hollow Shaft
ø 3 mm to 1/4 in
Temperature
-40° C to 85° C (operating)
Protocol
SSI

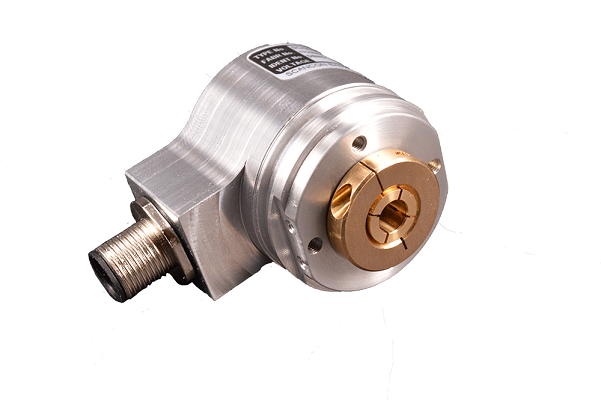

SCH36 SSI
Diameter
36 mm
Resolution
13 bits (Singleturn) / up to 37 bits (Multiturn)
Hollow Shaft
ø 4 mm to ø 8 mm
Temperature
-40° C to 85° C (operating)
Protocol
SSI

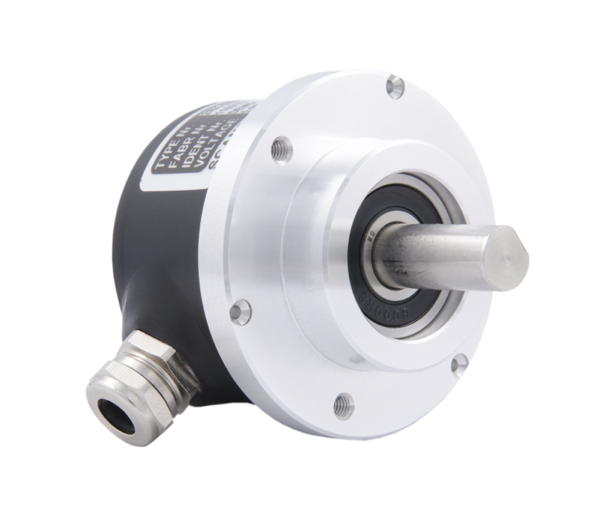

2RK SSI
Diameter
58 mm
Resolution
Up to 13 bits (Singleturn) Up to 37 bits (Multiturn)
Shaft
ø 6 mm or ø 10 mm
Temperature
-40° C to 85° C (operating)
Protocol
SSI
SCA50 SSI
Diameter
50 mm
Resolution
Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft
ø 6 mm
Protocol
SSI
Temperature
-40° C to 85° C (operating)

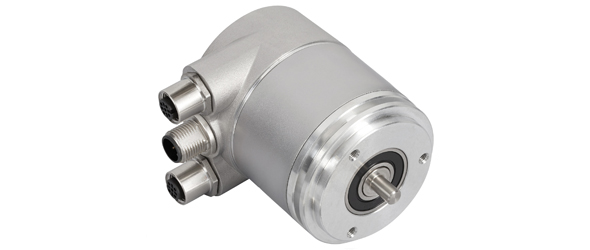

SAG Profinet IO
Diameter
58 mm
Resolution
Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft
ø 6 mm or ø 10 mm
Protocol
Profinet IO
Temperature
-40° C to 85° C (operating)

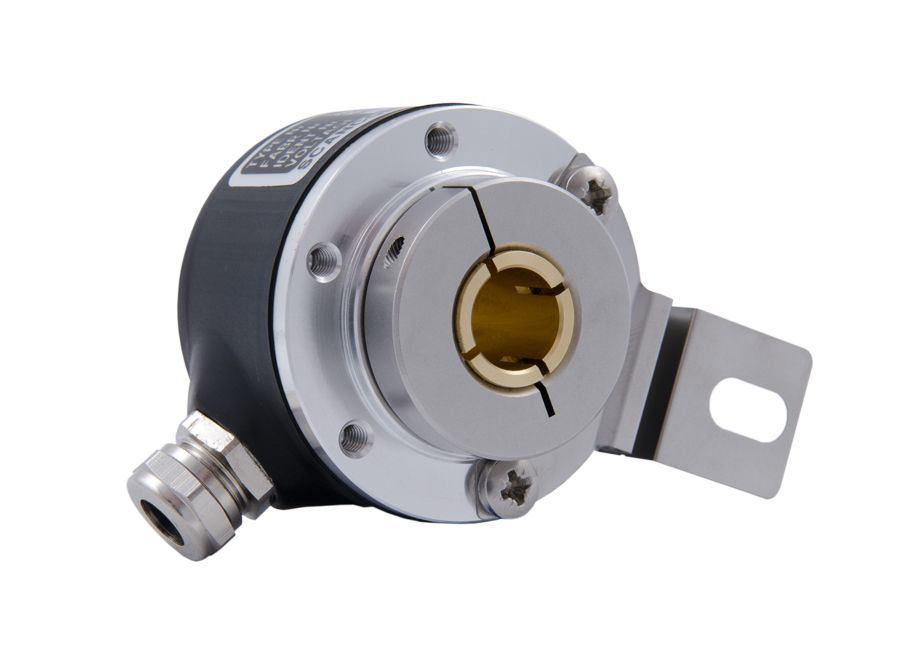

SCH50IF SSI
Diameter
50 mm
Resolution
up to 9,000 ppr
Hollow Shaft
ø 3/8 in to 16 mm
Temperature
-40° C to 85° C (operating)
IP rating
65 (66 & 67 options)

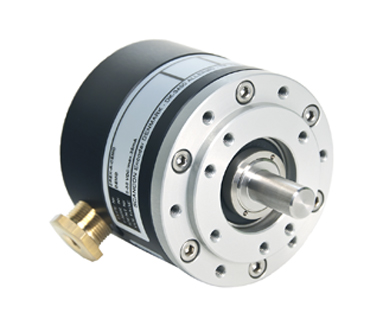

2REX-A-AN (Analog)
Diameter
68 mm
Output
0 - 20 mA or 4 - 20 mA
Shaft
10 mm
Temperature
-40° C to 70° C (operating)
Certifications
Ex db IIC
2REX-A-NA SSI
Diameter
68 mm
Resolution
Up to 13 bits (Singleturn) Up to 37 bits (Multiturn)
Shaft
10 mm
Temperature
-40° C to 70° C (operating)
Protocol
SSI
Certifications
Ex db IIC

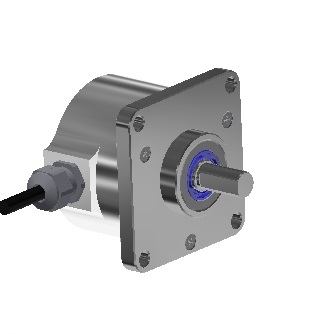

2QEX-A SSI
Diameter
2.5 in or 2.65 in square
Resolution
Up to 13 bits (Singleturn) Up to 37 bits (Multiturn)
Shaft
ø 1/4 in to 10 mm
Temperature
-40° C to 70° C (operating)
IP rating
67
Certifications
Ex nA IIC
