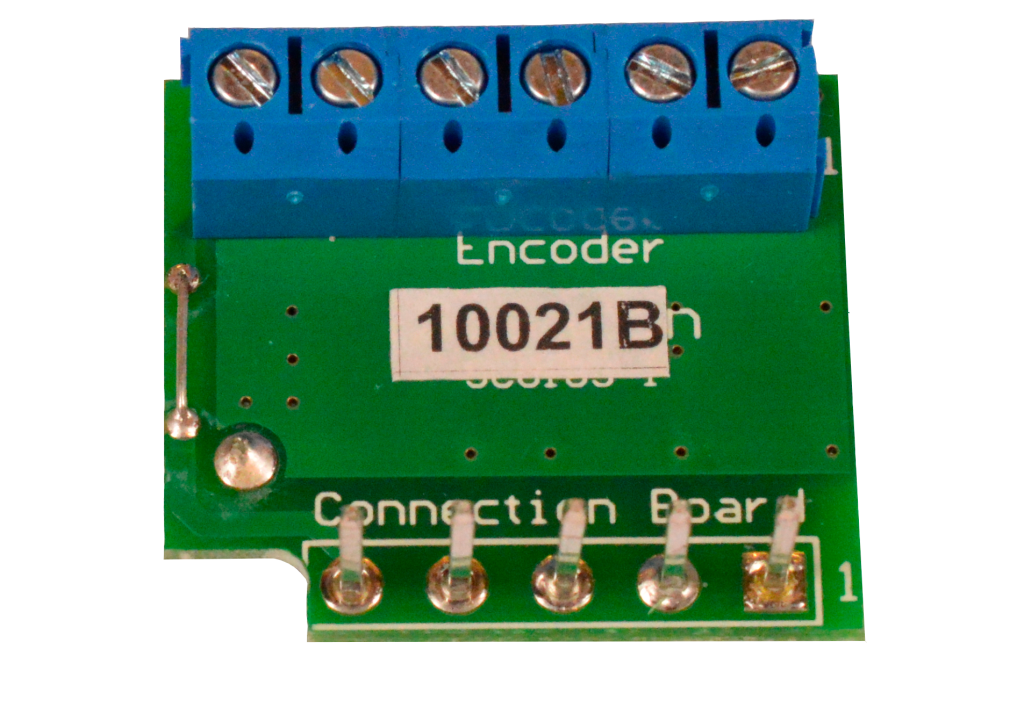

Type C
Diameter
M20, M25
Type
For Gates’ hydraulic hoses
Blind Plug M20
Blind Plug M25

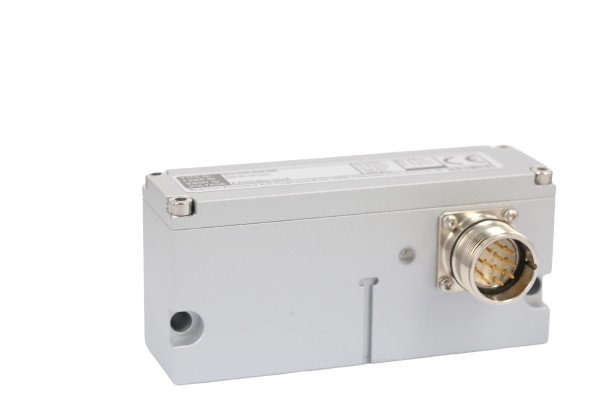

SCH120M
Length
120 mm
Resolution
up to 8192 ppr
Temperature
-40° C to +105° C (operating)
IP rating
66
SCA16
Diameter
16 mm
Resolution
up to 5,000 ppr
Shaft
ø 1,5 mm to 4 mm
Temperature
-20° C to 70° C (operating)
IP rating
50, 65
EA grad
hokus pokus

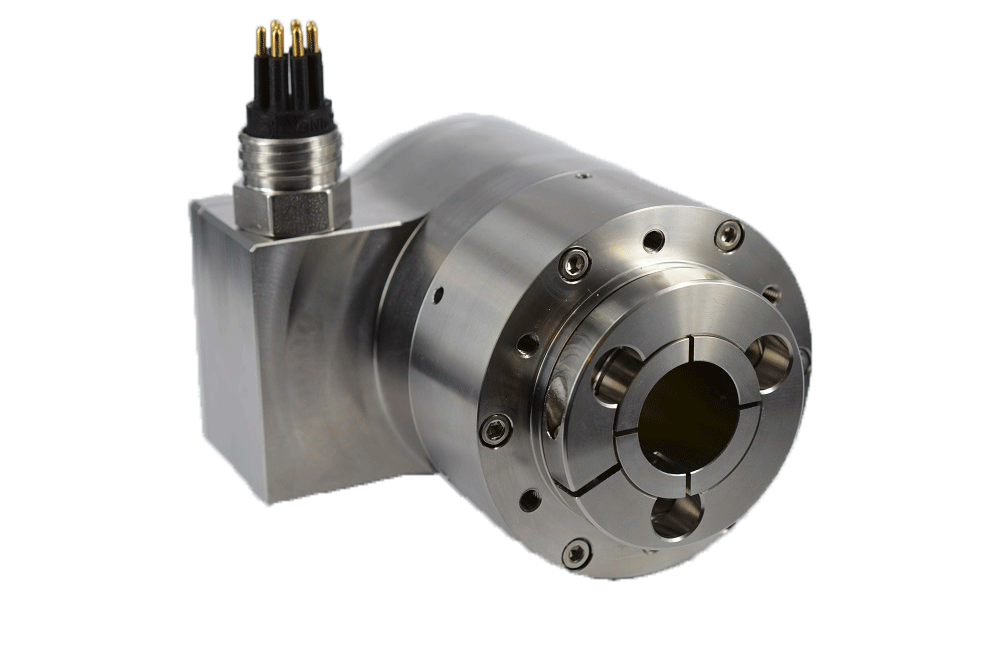

SCH68SUB (SUBSEA)
Diameter
68 mm (hollow bore)
Resolution
up to 4096 ppr
Hollow Shaft
ø 20 mm and 1 in
Temperature
-10° C to 50° C (operating)
IP rating
IP 68

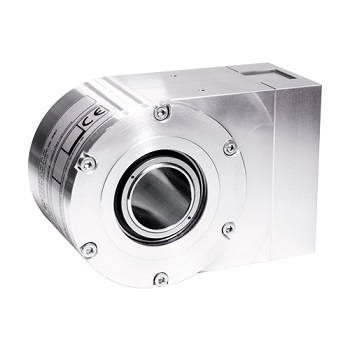

SCH88BEX - Profibus
Diameter
89 mm
Resolution
Up to 16 bits (Singleturn) / Up to 31 bits (Multiturn)
Hollow Shaft
ø 25 mm to ø 30 mm (1.18 in)
Temperature
-40° C to 75° C (operating)
IP rating
67 (65 & 66 option)
Protocol:
Profibus
Certifications
Ex db IIC Class I Div. 1, Zone 1, Zone 21
Ex Certifications
Technicalmanual
GSDFile
SCH68SUB SSI (SUBSEA)
Diameter
68 mm (hollow bore)
Resolution
Up to 13 bits (Singleturn) Up to 37 bits (Multiturn)
Hollow Shaft
Ø 20 mm and Ø1 in
Temperature
-10° C to 70° C (operating)
IP rating
IP 68
Protocol
SSI
