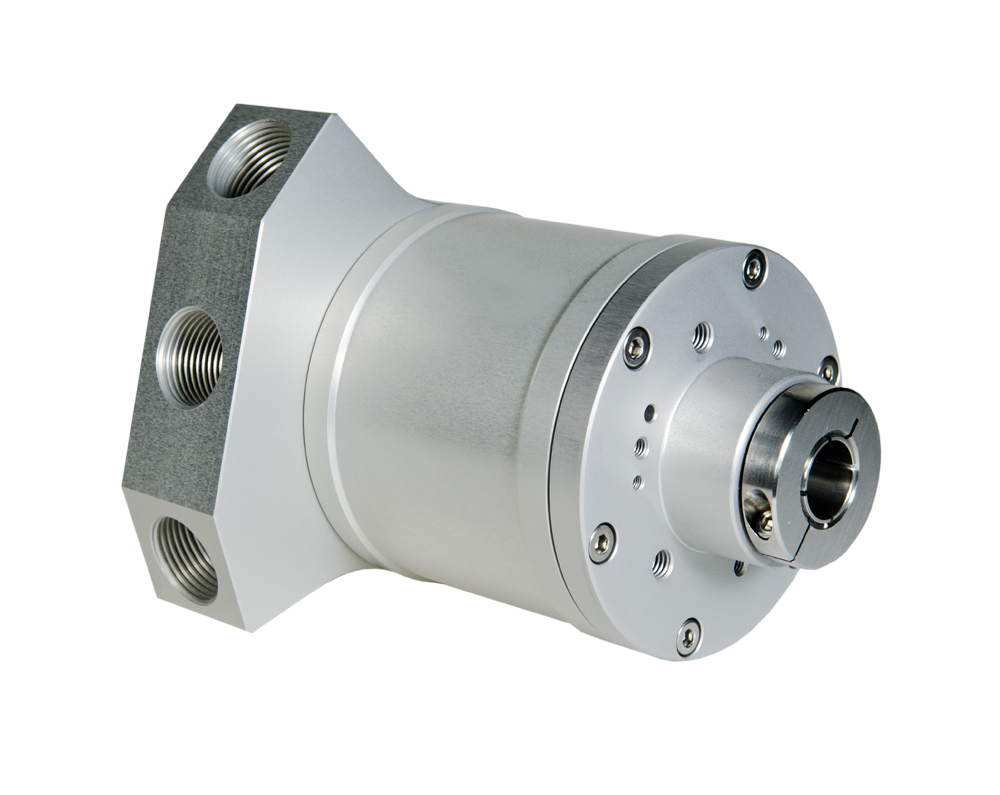

EXME-H ProfiBus
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft
ø 14 mm and ø 16 mm
Temperature
-40° C to 70° C (operating)
Protocol
ProfiBus
Certifications
Ex db I Mb
.svg)
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn)
Up to 30 bits (Multiturn)
Up to 30 bits (Multiturn)
Hollow shaft
Ø 14.0 mm to 16.0 mm
Temperature
-40° C to 70° C (operating)
Certifications
Ex db I Mb
IP Rating
64, 65, 66, 67, 68
EXME-H CANopen
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft
ø 14 mm and ø 16 mm
Temperature
-40° C to 70° C (operating)
Protocol
CANopen
Certifications
Ex db I Mb
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn)
Up to 30 bits (Multiturn)
Up to 30 bits (Multiturn)
Hollow shaft
Ø 14.0 mm to 16.0 mm
Temperature
-40° C to 70° C (operating)
Certifications
Ex db I Mb
IP Rating
64, 65, 66, 67, 68
EXME-H DeviceNet
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft
ø 14 mm and ø 16 mm
Protocol
DeviceNet
Temperature
-40° C to 70° C (operating)
Diameter
78 mm
Resolution
Up to 16 bits (Singleturn)
Up to 30 bits (Multiturn)
Up to 30 bits (Multiturn)
Hollow shaft
Ø 14.0 mm to 16.0 mm
Temperature
-40° C to 70° C (operating)
Certifications
Ex db I Mb
IP Rating
64, 65, 66, 67, 68

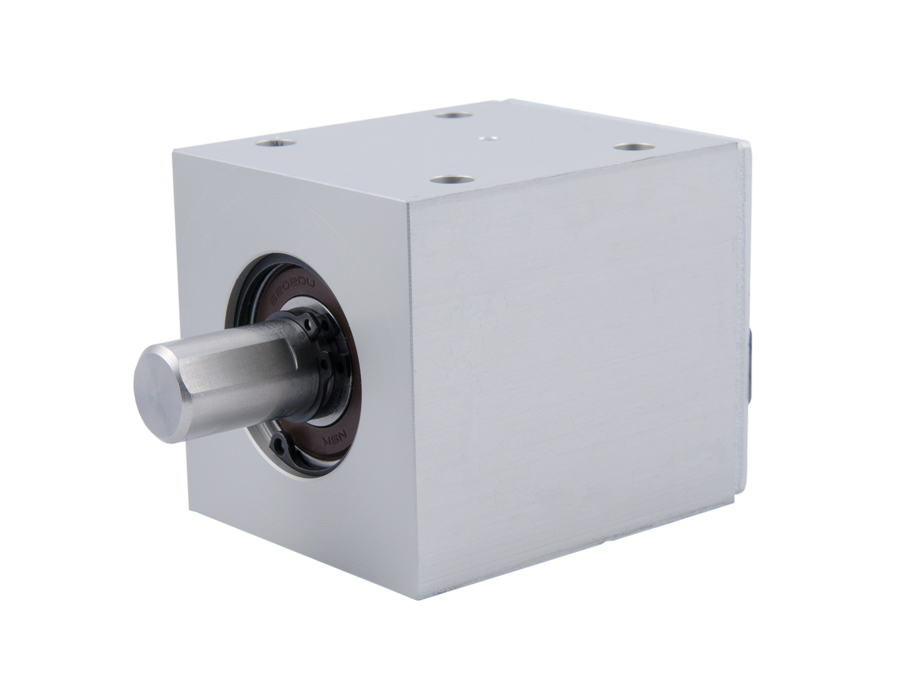

2RMHD-AC
Diameter
60 mm square
Output
0 - 20 mA or 4 - 20 mA
Shaft
12 mm and 15 mm
Temperature
-40° C to 85° C (operating)
IP rating
65
Diameter
60 mm
Shaft
Ø 12.0 mm to 15.0 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65

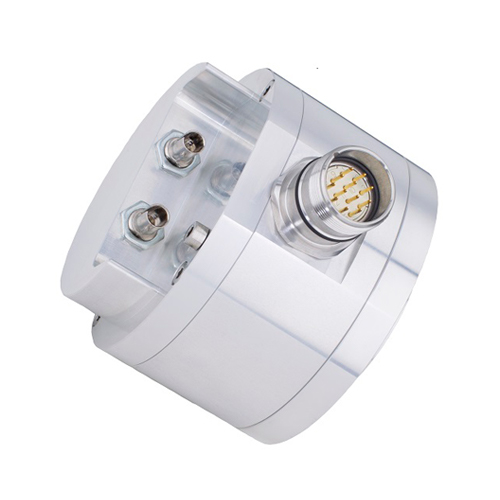

SCH94FO
Diameter
94 mm
Resolution
up to 12.500 ppr
Hollow Shaft
ø 12 mm to ø 17 mm
Temperature
-40° C to 85° C (operating)
IP rating
65 (66)
Diameter
94 mm
Resolution
Up to 12,500 ppr
Hollow shaft
Ø 12.0 mm to 17.0 mm
Temperature
-40° C to 85° C (operating)
IP Rating
65, 66
Signal Converter
Types
Transmitter / Receiver
Codes
Incremental
Input/output
Digital to Fiber Optic / Fiber Optic to Digital

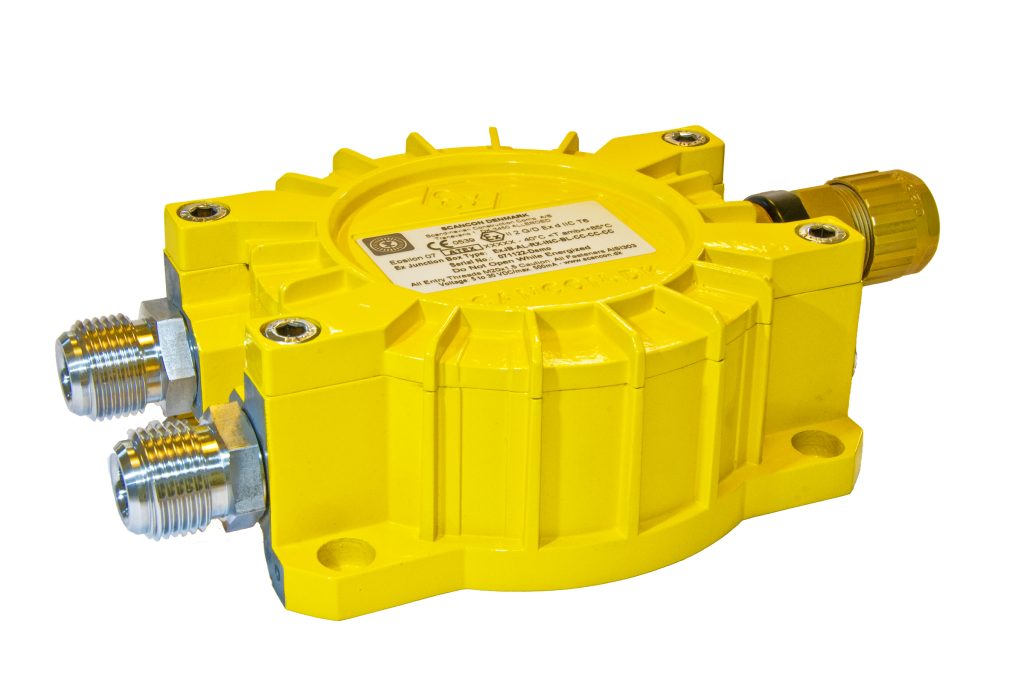

EX-Proof Fiber Optic Junction Box
Types
Transmitter / Receiver
Codes
Incremental
Input/output
Digital to Fiber Optic / Fiber Optic to Digital
Type A
Diameter
M20, M25
Type
Thread for hydraulic hose 1-1/16”-12UN
Type B
Diameter
M20, M25
Type
Standard
Type C
Diameter
M20, M25
Type
For Gates’ hydraulic hoses
