EXAG-H Dual Output ProfiBus/incremental

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 14 mm and ø 16 mm
Temperature -40° C to 70° C (operating)
Protocol Profibus & Incremental
Certifications Ex db IIC Class I, Div.2, Zone 1
Specification

Certifications

Installation Guide
GSD File
DOC

EXAG-H ProfiBus with Cable

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø 10 mm
Temperature -40° C to 70° C (operating)
Protocol ProfiBus
Certifications Ex db IIC
Specification

Certifications

Installation Guide
GSD File
DOC

EXAG-H-Profinet

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Hollow Shaft ø14 mm to ø1 inch
Temperature -40° C to 70° C (operating)
Protocol Profinet
Certifications Ex db IIC Class I, Div.2, Zone 1
Specification

Certifications

Technical Manual
Installation Guide
GSDML file
DOC

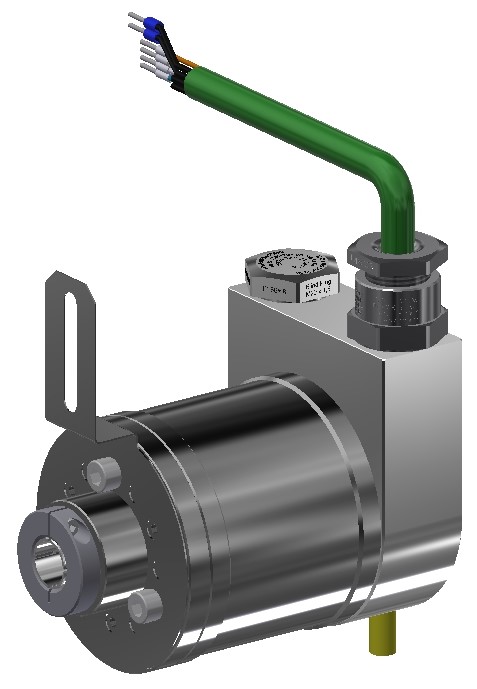

EXAG-H Ethernet Modbus with cable

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Temperature -40° C to 70° C (operating)
Hollow Shaft Ø14 mm to Ø1 inch
Protocol Modbus TCP/IP, Modbus TCP
Certification Ex db IIC
Specification

Certifications

Installation Guide
DOC

EXAG-H SIL2

Diameter 78 mm
Resolution Up to 13 bits (Singleturn) Up to 25 bits (Multiturn)
Hollow Shaft ø14 mm to ø1 inch
Temperature -40° C to 70° C (operating)
Protocol SIL2 Profisafe via Profinet
Certifications Ex db IIC, Class I, Div.2, Zone 1
Specification

Certifications

User Manual SIL2
Installation Guide
GSD file
DOC

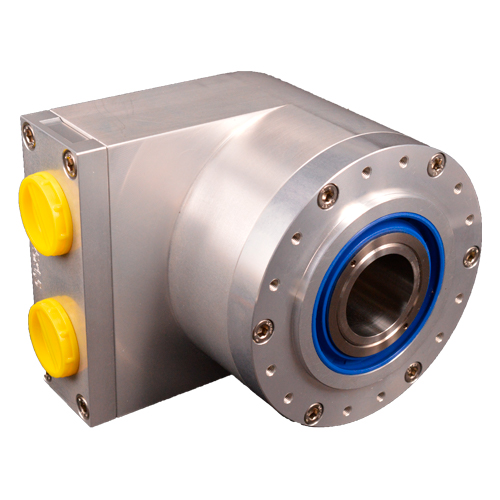

SCH108BEX - Profibus

Diameter 108 mm
Resolution Up to 16 bits (Singleturn) Up to 31 bits (Multiturn)
Hollow shaft ø 25 mm to 1 1/4 in
Temperature -40° C to 70° C (operating)
Protocol ProfiBus
Certifications Ex db IIB HB+H2 Class I, Div. 1, Zone 1
Specification

Certifications

Technical Manual
Installation Guide
GSD File
DOC

EXME-A SSI

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft ø 10 mm
Temperature -40° C to 70° C (operating)
Protocol SSI
Certifications Ex db I Mb
Specification

Certifications

Installation Guide
DOC

EXME-A ProfiBus

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft ø 10 mm
Temperature -40° C to 70° C (operating)
Protocol ProfiBus
Certifications Ex db I Mb
Specification

Certifications

Installation Guide
GSD File
DOC

EXME-A CANopen

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft ø 10 mm
Temperature -40° C to 70° C (operating)
Protocol CANopen
Certifications Ex db I Mb
Specification

Certifications

Installation Guide
EDS File
DOC

EXME-A DeviceNet

Diameter 78 mm
Resolution Up to 16 bits (Singleturn) Up to 30 bits (Multiturn)
Shaft ø 10 mm
Temperature -40° C to 70° C (operating)
Protocol DeviceNet
Certifications Ex db I Mb
Specification

Certifications

Installation Guide
EDS File
DOC
